Kärcher BD 50/50 C Bp Classic


	HOME & GARDEN PROFESSIONAL

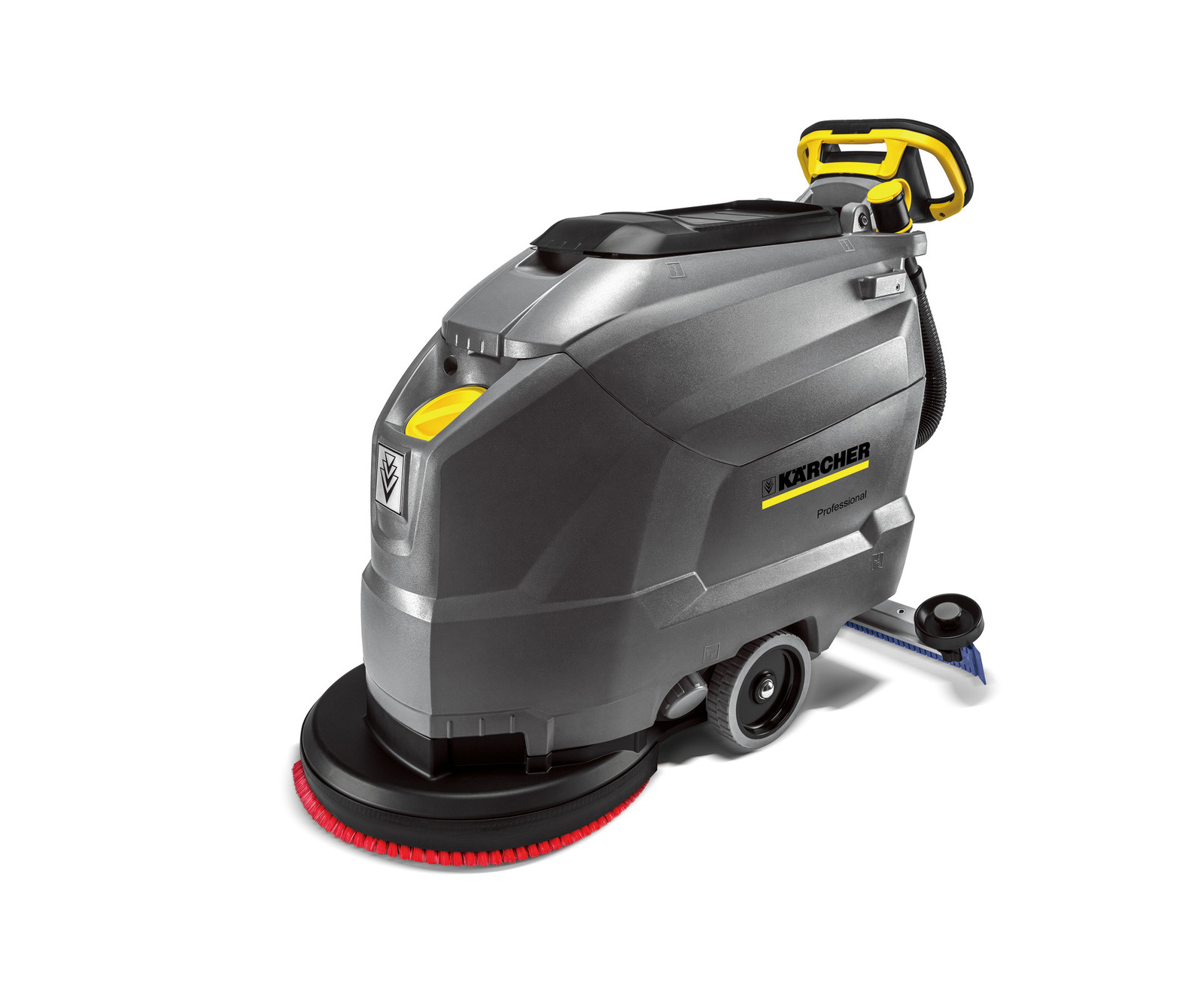

	BD 50/50 C Bp Classic The BD 50/50 C Bp Classic is an affordable, compact entry-level model in the battery-powered scrubber drier class. The machine allows area performances of up to 2000 m²/h.

1 / 8

BD 50/50 C Bp Classic (part number: 1.127-007.0)

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

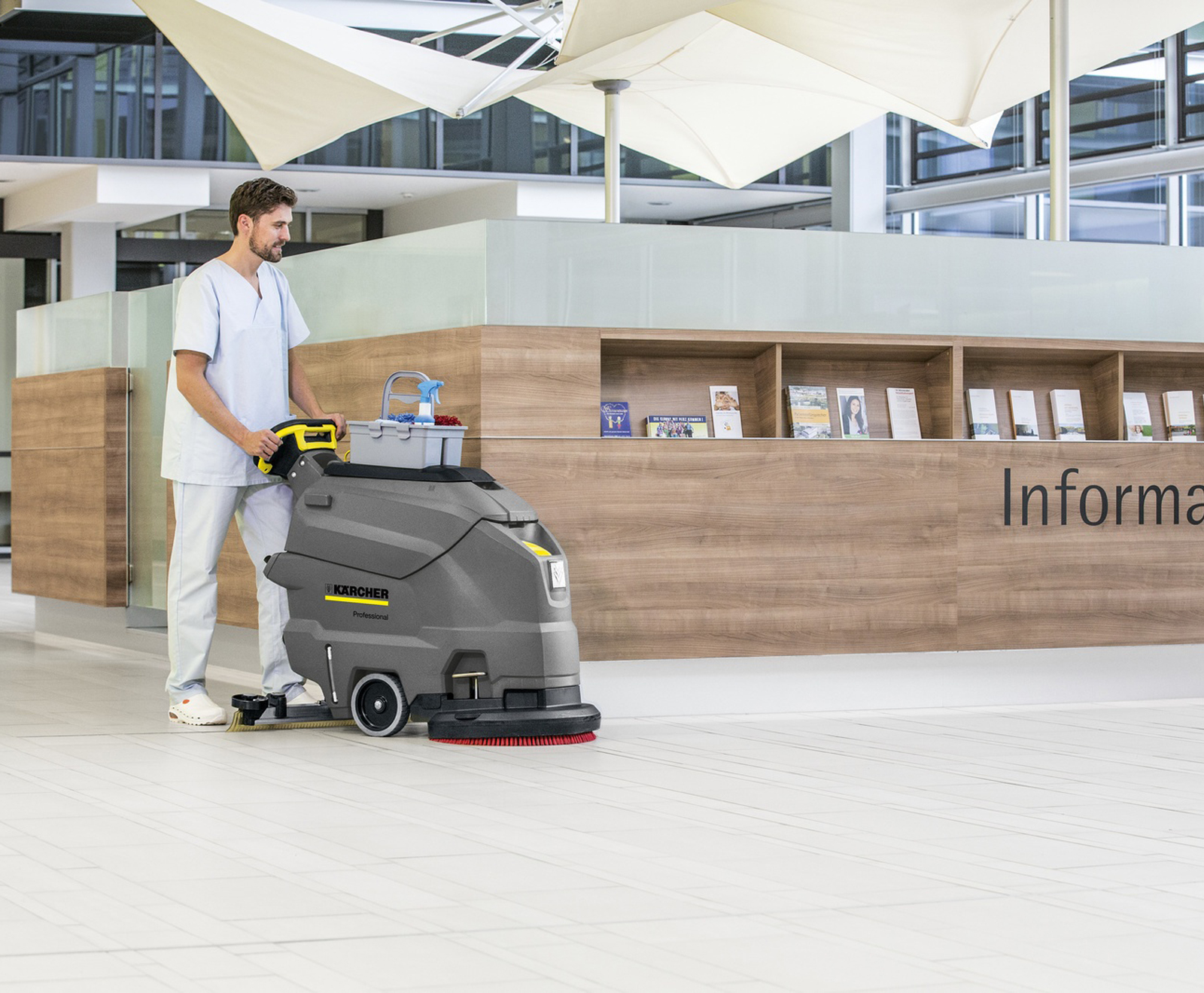

	The BD 50/50 C Bp Classic offers a clear view of the area to be cleaned due to the compact dimensions of this battery-powered scrubber drier with sophisticated disc technology. The operation of this machine is as clear as the view with the EASY Operation Panel from Kärcher. Machine features have been reduced to the most important settings and functions to enable use after brief instruction. We recommend the BD 50/50 C Bp Classic for use in supermarkets, hotels or healthcare facilities.

FEATURES AND BENEFITS

Affordable entry-level model

▪	Excellent price-performance ratio.
▪	Reduced to the most important functions.

Simple operation thanks to EASY-Operation Panel

▪	Self-explanatory symbols and clear control panel.
▪	Brief familiarisation phases.
▪	Simple, yellow colour-coded control elements make the machine easy to use.

Large tank volume with compact dimensions

▪	Extremely manoeuvrable.
▪	Offers a clear view of the cleaning surface.

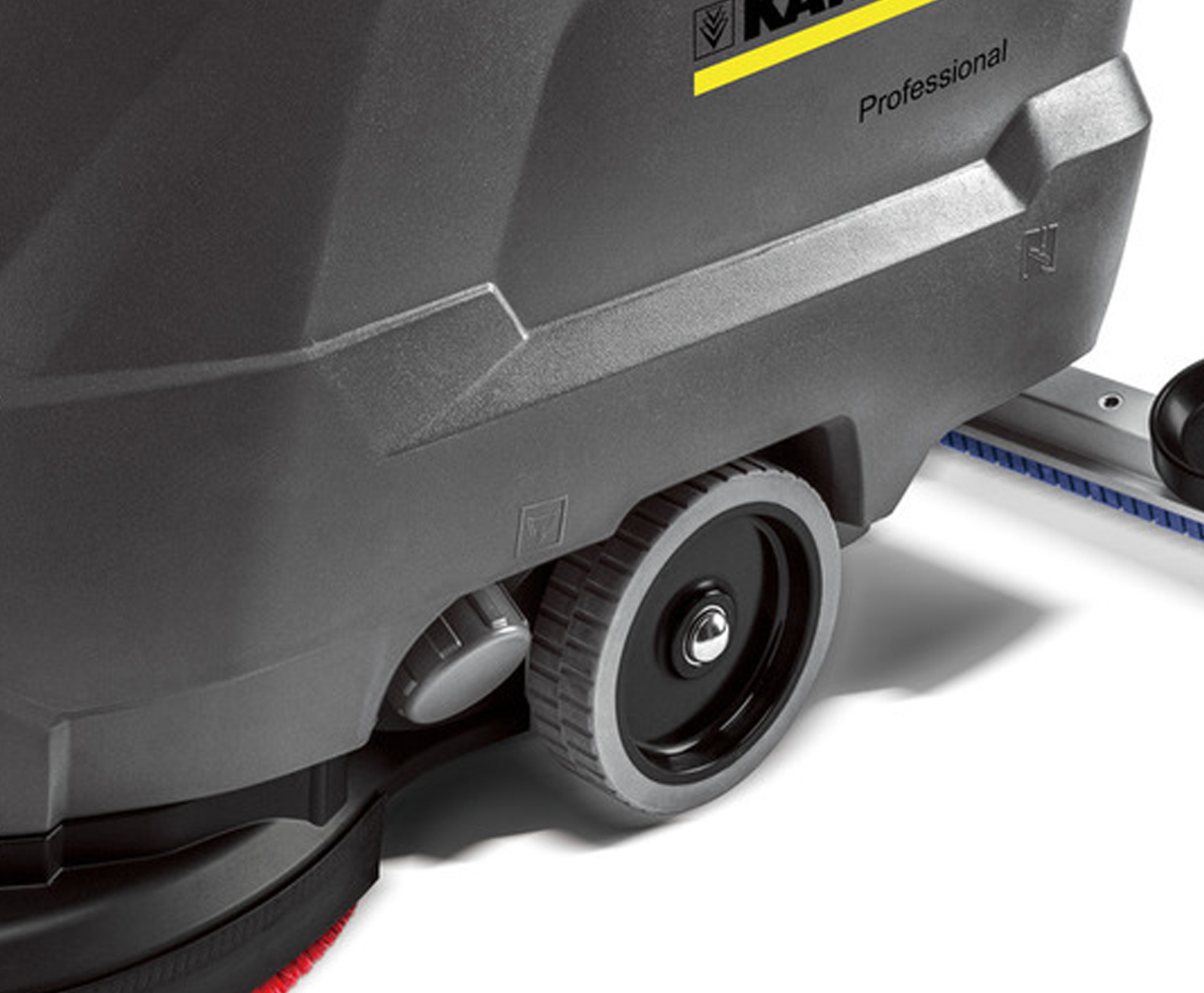

Equipped with solenoid valve and fold-out transport roll for maximum comfort

▪	Solenoid valve for automatic water cutout after the dead man's switch is released.
▪	The fold-out transport roll makes possible the convenient two-step method.
▪	Fold-out transport roll facilitates the transport of the machine considerably.

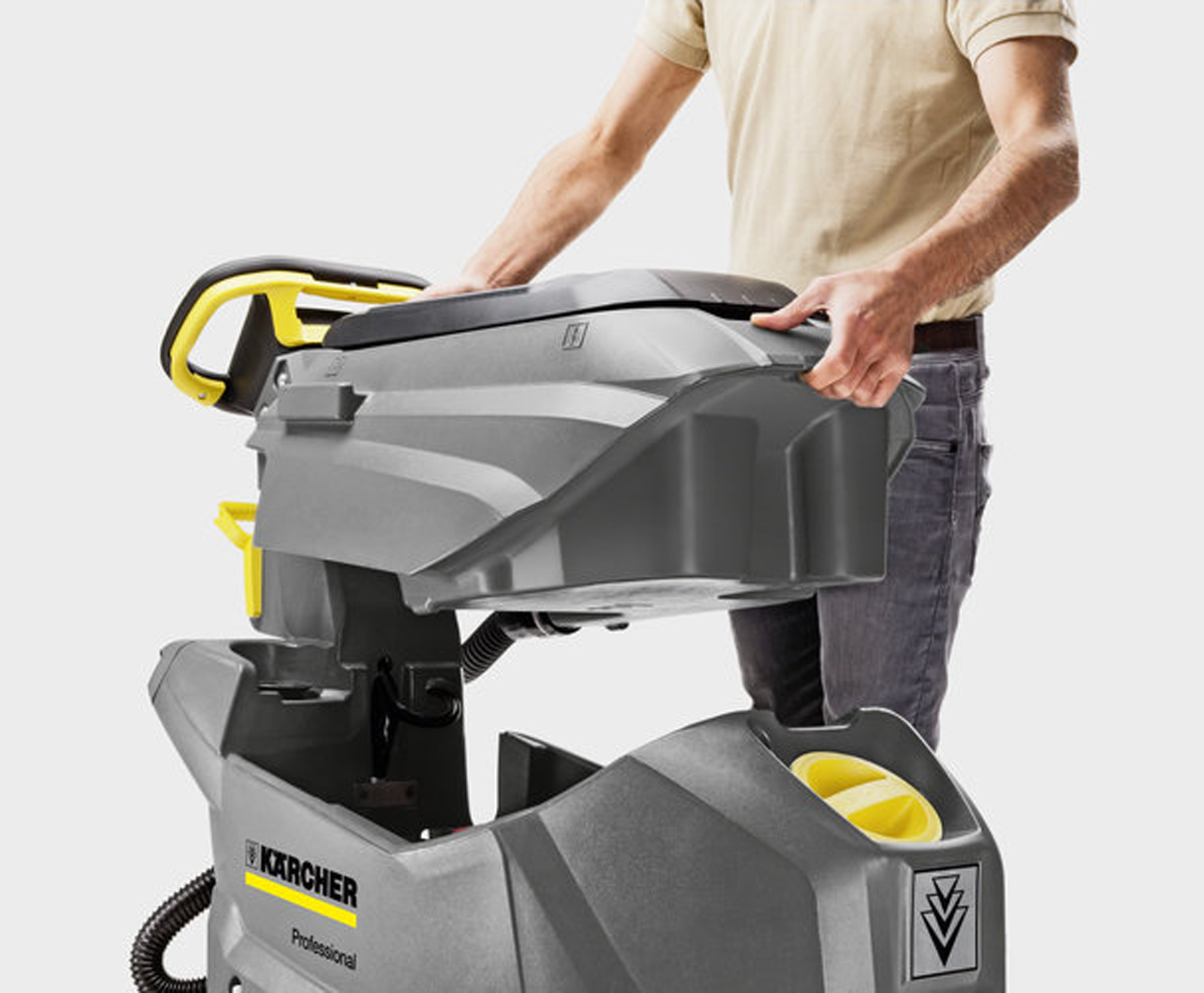

Large battery compartment for all standard battery types

▪	Easily accessible battery compartment for fast battery replacement.
▪	Also suitable for multiple shift operation.

Home Base system

▪	Options for the attachment of further accessory parts or equipment.
▪	Additional cleaning utensils can be carried on-board.

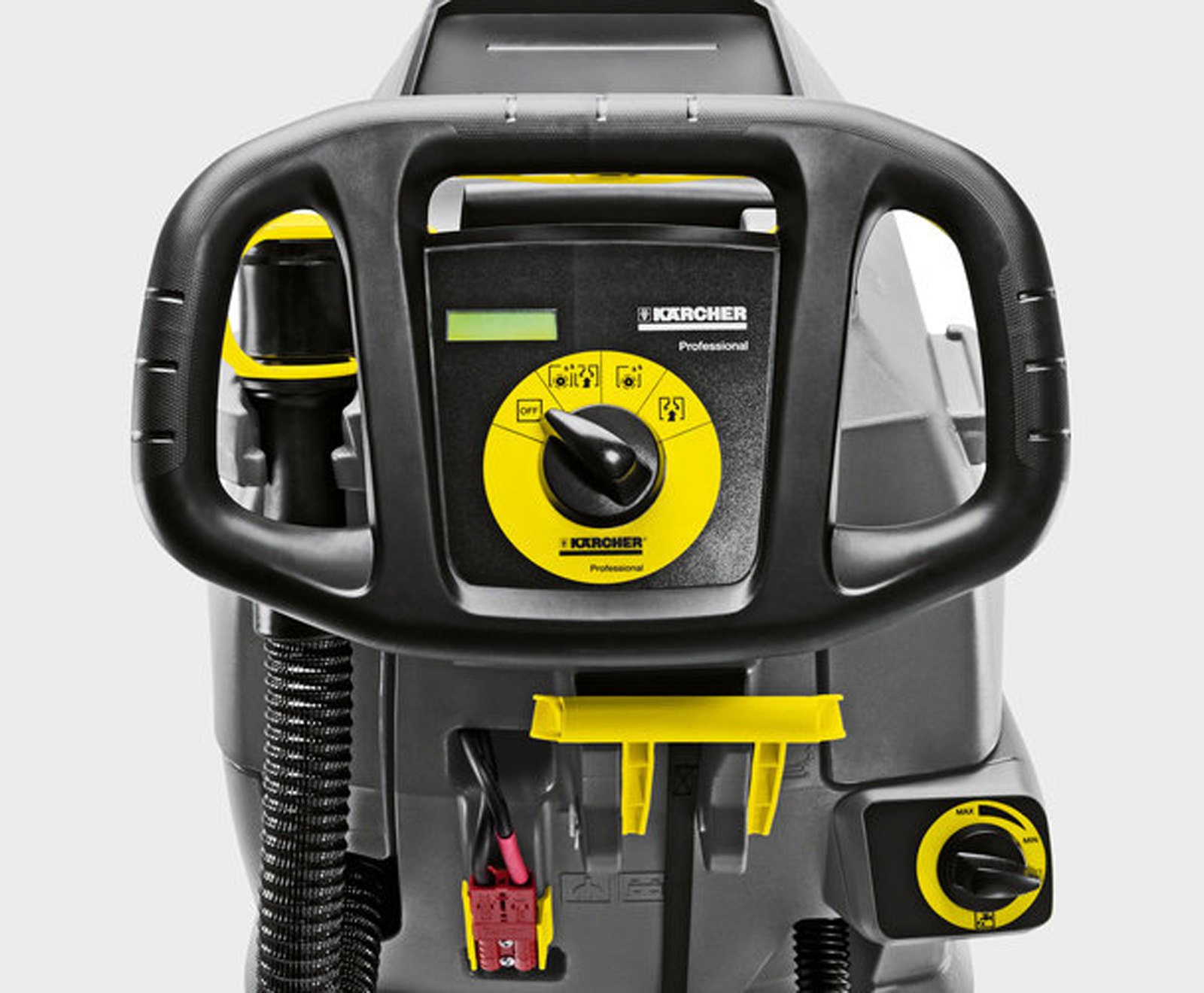

EASY-Operation Panel

▪	1-switch operation.
▪	Very easy to use.

Simple assignment of functions with operating elements in yellow

▪	Short teach-in times also for untrained personnel.

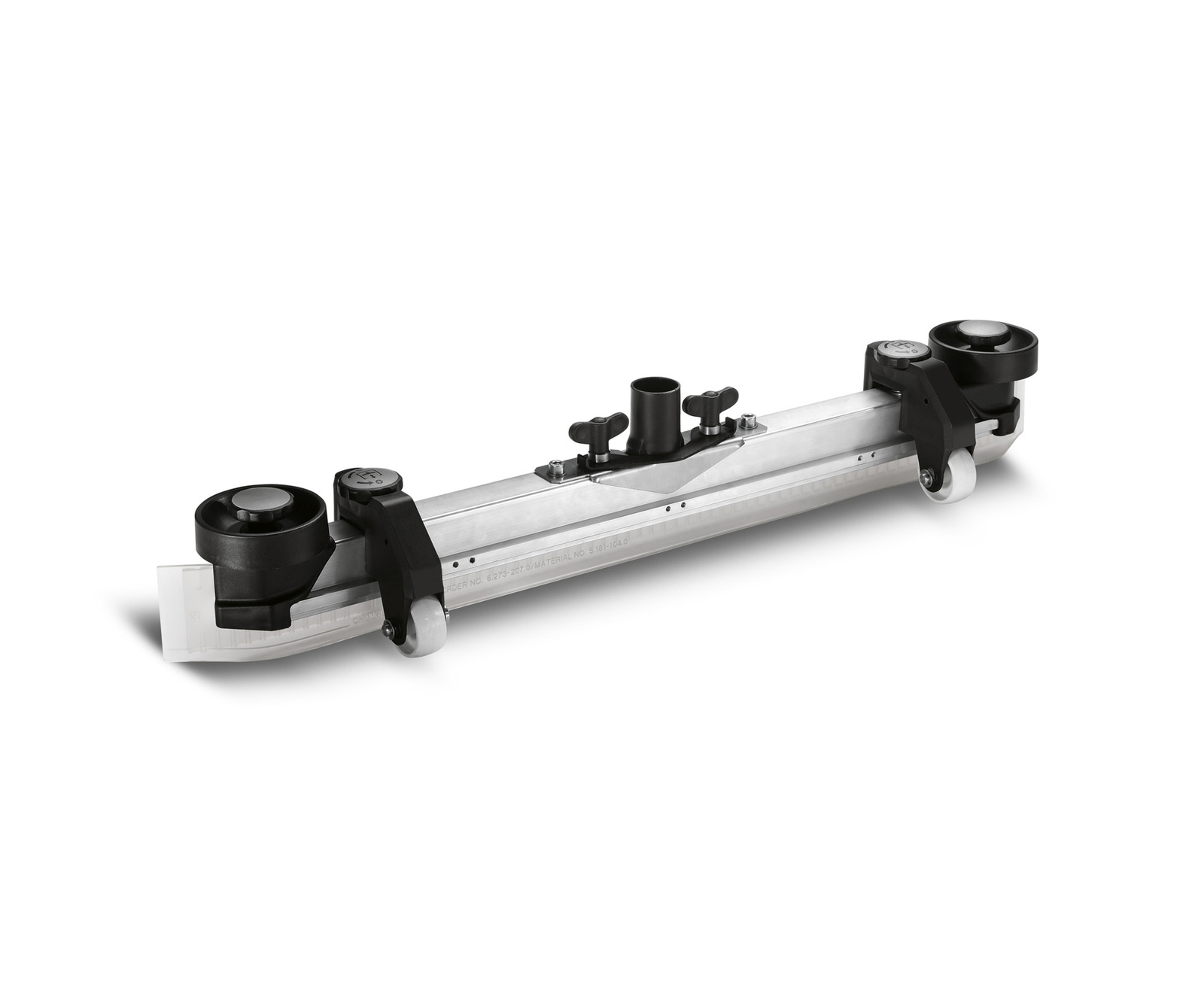

Available with straight or curved squeegees

▪	Can be adjusted to suit individual floor conditions.

Robust and durable control elements

▪	Suitable for daily use.
▪	Extremely durable.

SPECIFICATIONS

Technical data

Equipment

Brush working width (mm)

510

Working width, vacuuming (mm)

850

Rated input power / Amps (W)

max. 1100

Battery (V/Ah)

24 / 105

Battery capacity (Ah)

105

Battery voltage (V)

Fresh/dirty water tank (l)

50 / 50

Brush contact pressure (g/cm²/kg)

27.3 - 28.5 / 20 - 23

Brush speed (rpm)

155

Max. area performance (m²/h)

2040

Practical area performance (m²/h)

1020

Sound pressure level (dB(A))

Weight (with accessories) (kg)

74.8

Weight without accessories (kg)

Ship weight incl. packaging (kg)

86.4

Dimensions (L × W × H) (mm)

1170 x 570 x 1025

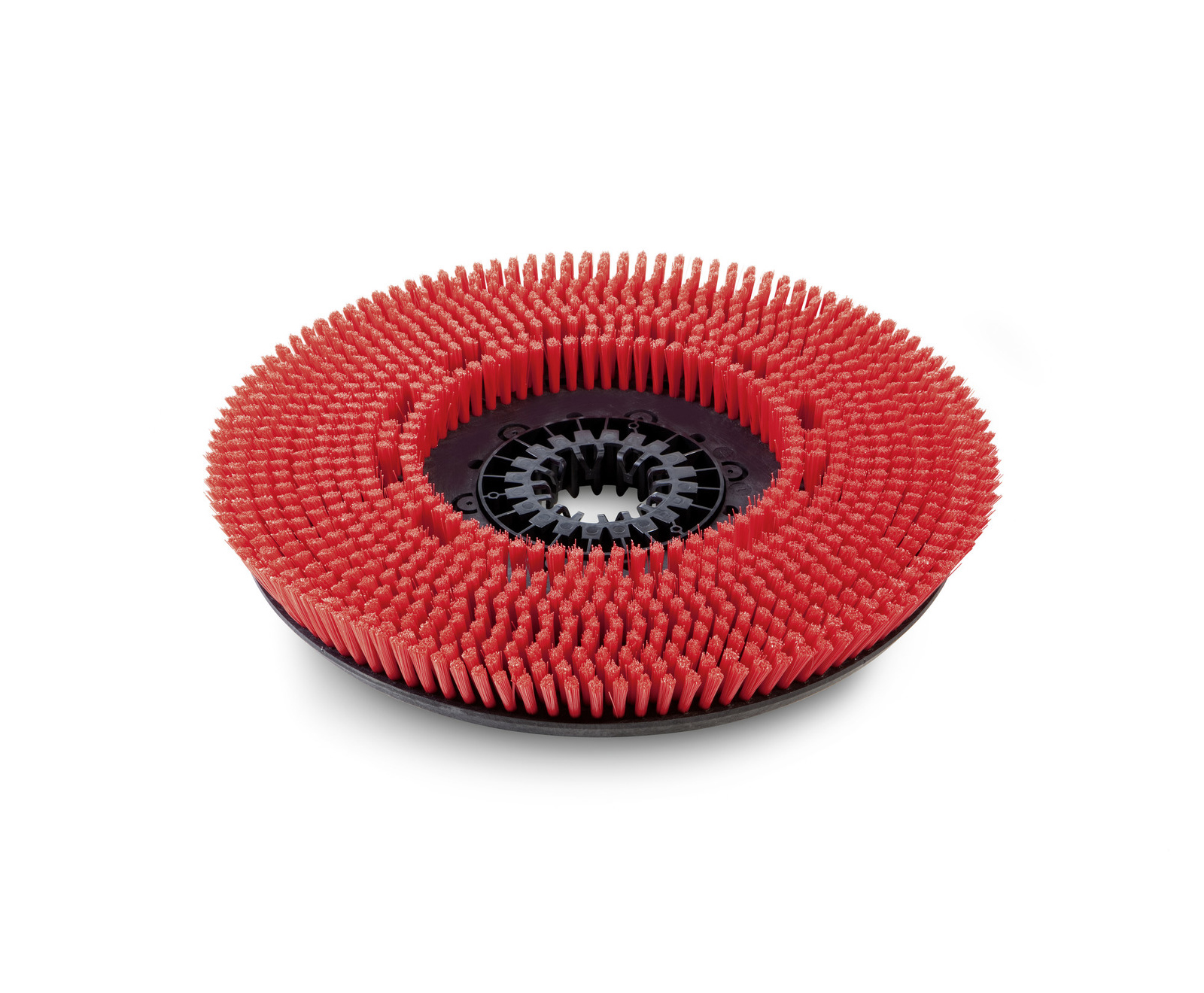

▪	Disc brush

▪	2-tank system

▪	Transport wheels

DOWNLOADS

Product information

Operating Instructions

Quickstart instructions

Safety instructions


	HOME & GARDEN PROFESSIONAL

	BD 50/50 C Bp Classic The BD 50/50 C Bp Classic is an affordable, compact entry-level model in the battery-powered scrubber drier class. The machine allows area performances of up to 2000 m²/h.

1 / 8

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

	The BD 50/50 C Bp Classic offers a clear view of the area to be cleaned due to the compact dimensions of this battery-powered scrubber drier with sophisticated disc technology. The operation of this machine is as clear as the view with the EASY Operation Panel from Kärcher. Machine features have been reduced to the most important settings and functions to enable use after brief instruction. We recommend the BD 50/50 C Bp Classic for use in supermarkets, hotels or healthcare facilities.

FEATURES AND BENEFITS

Affordable entry-level model

▪	Excellent price-performance ratio.
▪	Reduced to the most important functions.

Simple operation thanks to EASY-Operation Panel

▪	Self-explanatory symbols and clear control panel.
▪	Brief familiarisation phases.
▪	Simple, yellow colour-coded control elements make the machine easy to use.

Large tank volume with compact dimensions

▪	Extremely manoeuvrable.
▪	Offers a clear view of the cleaning surface.

Equipped with solenoid valve and fold-out transport roll for maximum comfort

▪	Solenoid valve for automatic water cutout after the dead man's switch is released.
▪	The fold-out transport roll makes possible the convenient two-step method.
▪	Fold-out transport roll facilitates the transport of the machine considerably.

Large battery compartment for all standard battery types

▪	Easily accessible battery compartment for fast battery replacement.
▪	Also suitable for multiple shift operation.

Home Base system

▪	Options for the attachment of further accessory parts or equipment.
▪	Additional cleaning utensils can be carried on-board.

EASY-Operation Panel

▪	1-switch operation.
▪	Very easy to use.

Simple assignment of functions with operating elements in yellow

▪	Short teach-in times also for untrained personnel.

Available with straight or curved squeegees

▪	Can be adjusted to suit individual floor conditions.

Robust and durable control elements

▪	Suitable for daily use.
▪	Extremely durable.

SPECIFICATIONS

Technical data

Equipment

Brush working width (mm)

510

Working width, vacuuming (mm)

850

Rated input power / Amps (W)

max. 1100

Battery (V/Ah)

24 / 105

Battery capacity (Ah)

105

Battery voltage (V)

Fresh/dirty water tank (l)

50 / 50

Brush contact pressure (g/cm²/kg)

27.3 - 28.5 / 20 - 23

Brush speed (rpm)

155

Max. area performance (m²/h)

2040

Practical area performance (m²/h)

1020

Sound pressure level (dB(A))

Weight (with accessories) (kg)

74.8

Weight without accessories (kg)

Ship weight incl. packaging (kg)

86.4

Dimensions (L × W × H) (mm)

1170 x 570 x 1025

▪	Disc brush

▪	2-tank system

▪	Transport wheels

DOWNLOADS

Product information

Operating Instructions

Quickstart instructions

Safety instructions


	HOME & GARDEN PROFESSIONAL

	BD 50/50 C Bp Classic The BD 50/50 C Bp Classic is an affordable, compact entry-level model in the battery-powered scrubber drier class. The machine allows area performances of up to 2000 m²/h.

	1 / 8 2 / 8 3 / 8 4 / 8 5 / 8 6 / 8 7 / 8 8 / 8 ❮ ❯

	DESCRIPTION FEATURES AND BENEFITS SPECIFICATIONS DOWNLOADS VIDEOS APPLICATION AREAS

	DESCRIPTION

	The BD 50/50 C Bp Classic offers a clear view of the area to be cleaned due to the compact dimensions of this battery-powered scrubber drier with sophisticated disc technology. The operation of this machine is as clear as the view with the EASY Operation Panel from Kärcher. Machine features have been reduced to the most important settings and functions to enable use after brief instruction. We recommend the BD 50/50 C Bp Classic for use in supermarkets, hotels or healthcare facilities.

FEATURES AND BENEFITS

Affordable entry-level model

▪	Excellent price-performance ratio.
▪	Reduced to the most important functions.

Simple operation thanks to EASY-Operation Panel

▪	Self-explanatory symbols and clear control panel.
▪	Brief familiarisation phases.
▪	Simple, yellow colour-coded control elements make the machine easy to use.

Large tank volume with compact dimensions

▪	Extremely manoeuvrable.
▪	Offers a clear view of the cleaning surface.

Equipped with solenoid valve and fold-out transport roll for maximum comfort

▪	Solenoid valve for automatic water cutout after the dead man's switch is released.
▪	The fold-out transport roll makes possible the convenient two-step method.
▪	Fold-out transport roll facilitates the transport of the machine considerably.

Large battery compartment for all standard battery types

▪	Easily accessible battery compartment for fast battery replacement.
▪	Also suitable for multiple shift operation.

Home Base system

▪	Options for the attachment of further accessory parts or equipment.
▪	Additional cleaning utensils can be carried on-board.

EASY-Operation Panel

▪	1-switch operation.
▪	Very easy to use.

Simple assignment of functions with operating elements in yellow

▪	Short teach-in times also for untrained personnel.

Available with straight or curved squeegees

▪	Can be adjusted to suit individual floor conditions.

Robust and durable control elements

▪	Suitable for daily use.
▪	Extremely durable.

SPECIFICATIONS

Technical data

Brush working width (mm)

510

Working width, vacuuming (mm)

850

Rated input power / Amps (W)

max. 1100

Battery (V/Ah)

24 / 105

Battery capacity (Ah)

105

Battery voltage (V)

Fresh/dirty water tank (l)

50 / 50

Brush contact pressure (g/cm²/kg)

27.3 - 28.5 / 20 - 23

Brush speed (rpm)

155

Max. area performance (m²/h)

2040

Practical area performance (m²/h)

1020

Sound pressure level (dB(A))

Weight (with accessories) (kg)

74.8

Weight without accessories (kg)

Ship weight incl. packaging (kg)

86.4

Dimensions (L × W × H) (mm)

1170 x 570 x 1025

Equipment

▪	Disc brush

▪	2-tank system

▪	Transport wheels

DOWNLOADS

Product information	Operating Instructions	Quickstart instructions


Safety instructions


	General Terms and Conditions	Copyright © 2024
		Kou Kit Machinery and Equipments
		All rights reserved.


	General Terms and Conditions	Copyright © 2024
		Kou Kit Machinery and Equipments
		All rights reserved.

	VIDEOS

	BD 50/50 C Classic Demonstration Professional Kärcher cleaning solutions for the retail trade BD 50/50 Operation and Maintenance
