HD 9/20-4 Classic

Most powerful high-pressure cleaner of the HD Classic Range: "HD 9/20-4 Classic" with 900 l/h water flow, three-phase drive and crankshaft pump with ceramic piston. For long service intervals.





1 / 8

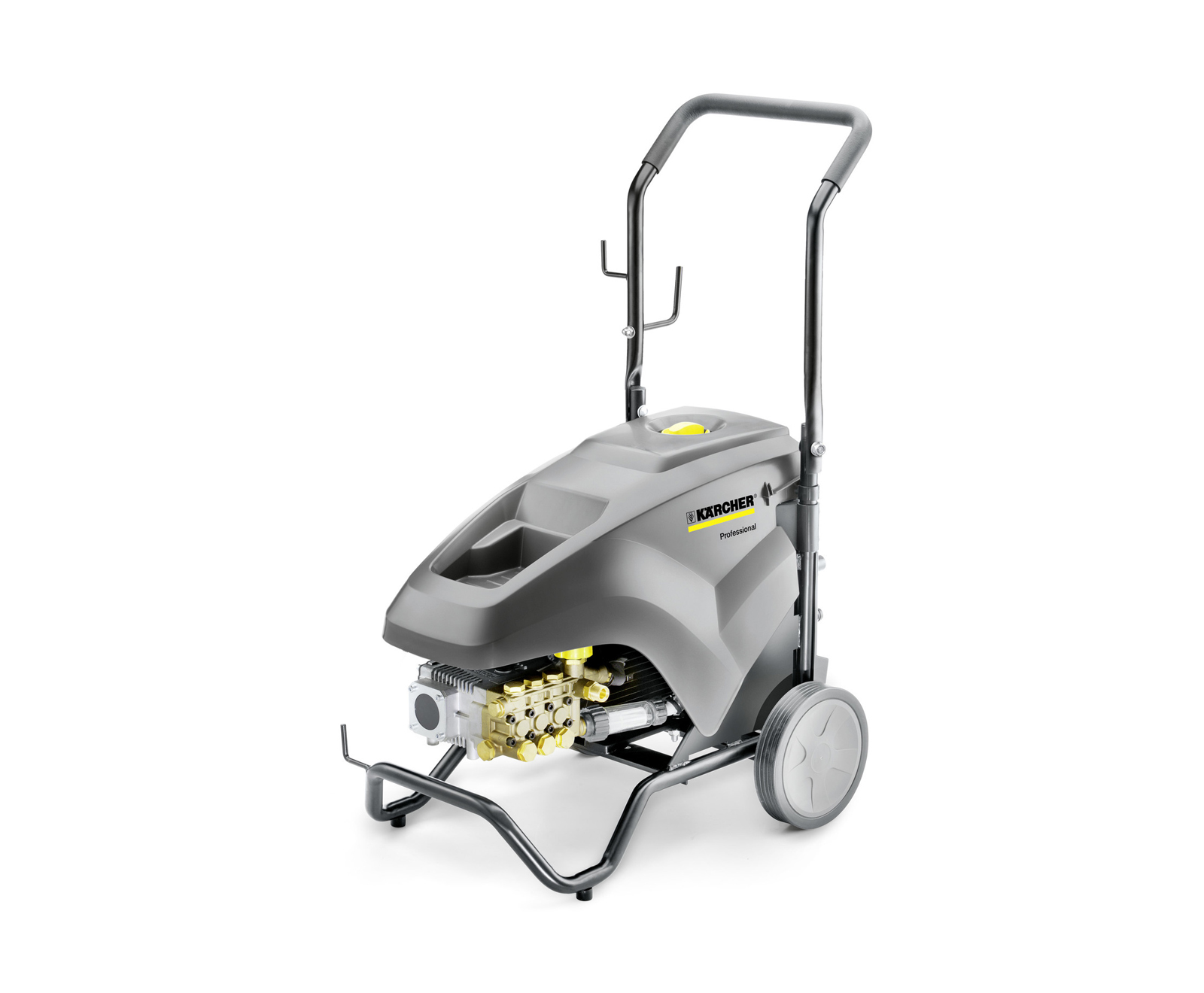

HD 9/20-4 Classic (part number: 1.367-308.0)
2 / 8

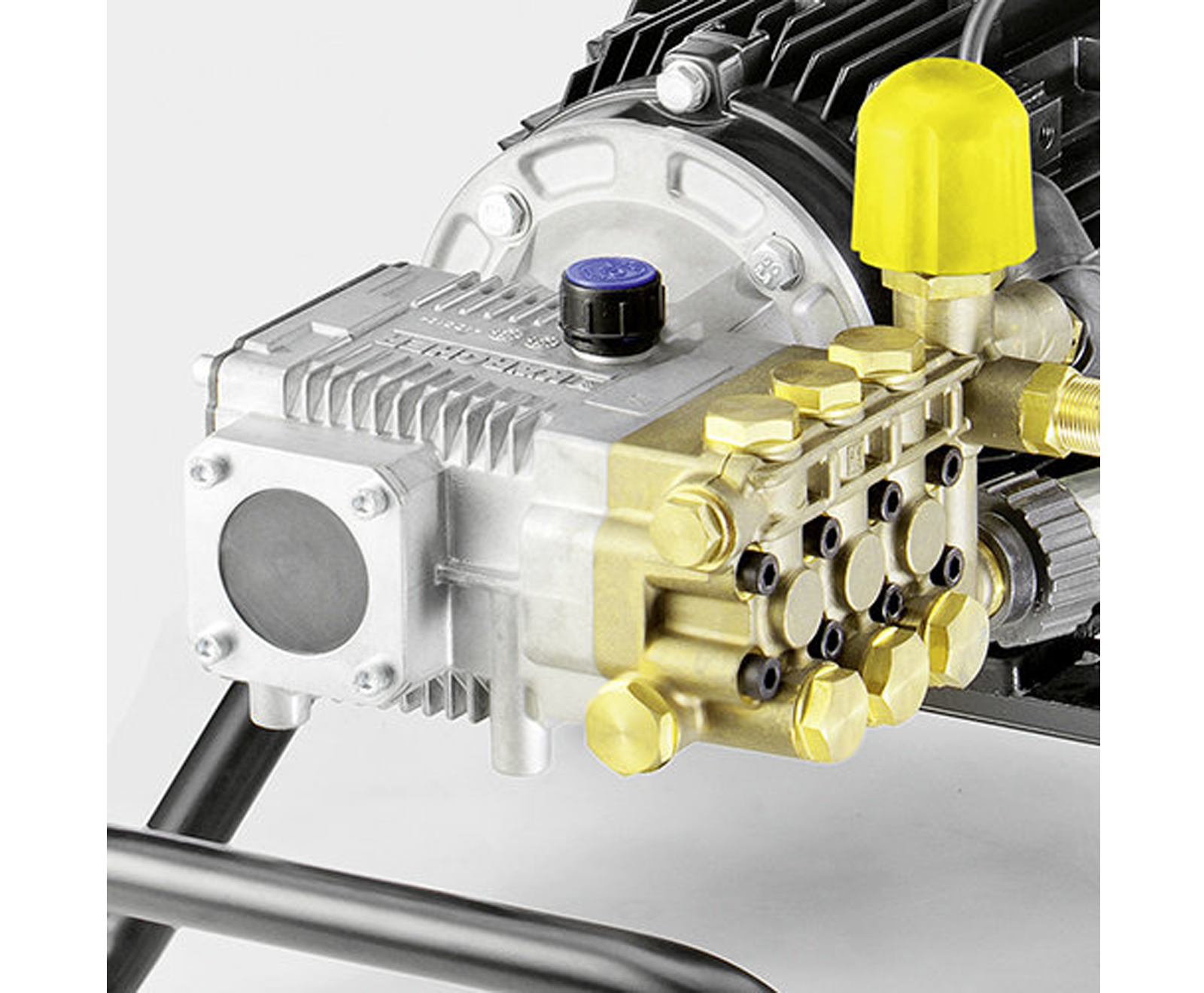

Large crankshafts and connecting rods
3 / 8

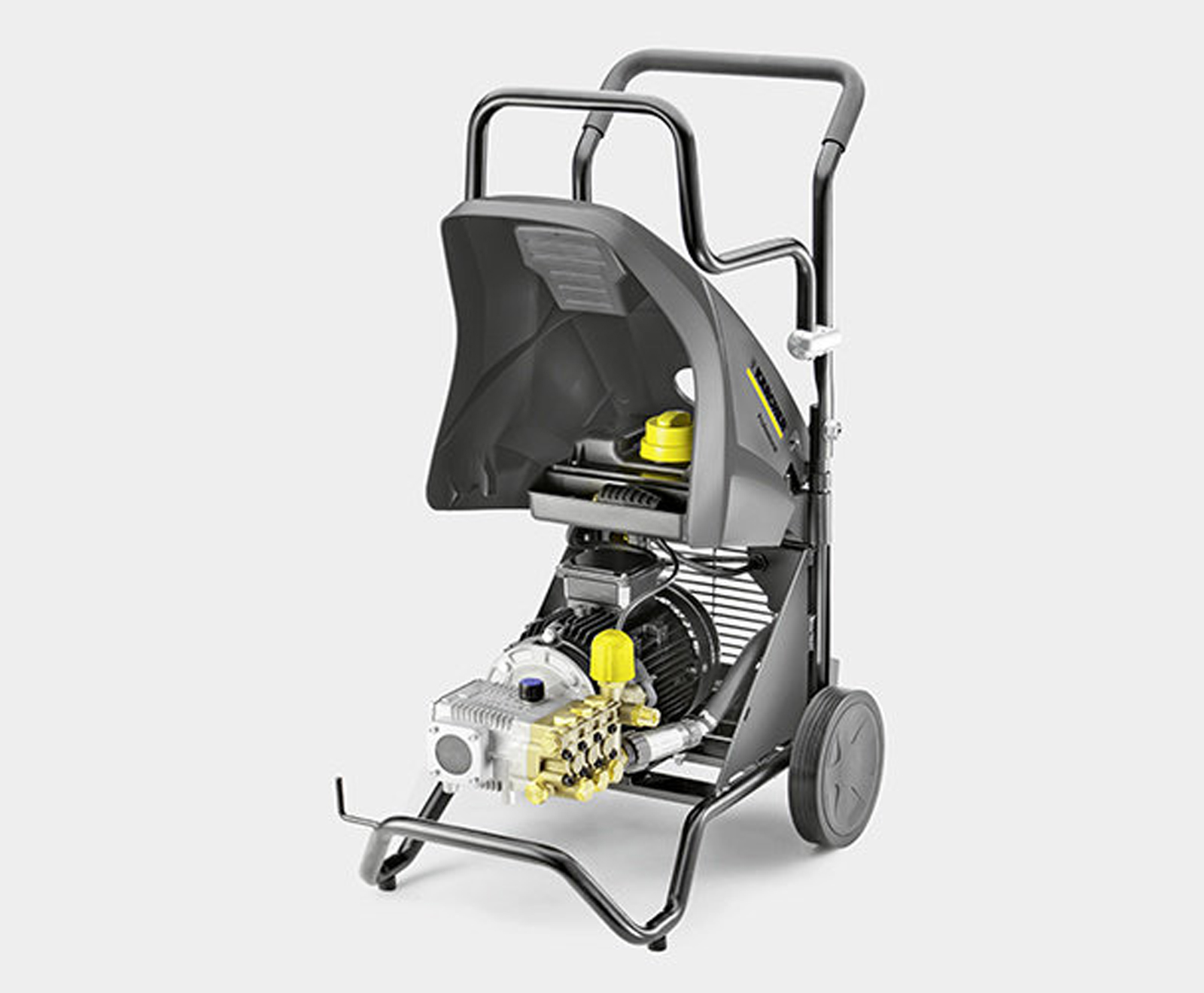

Wide-opening machine cover
4 / 8

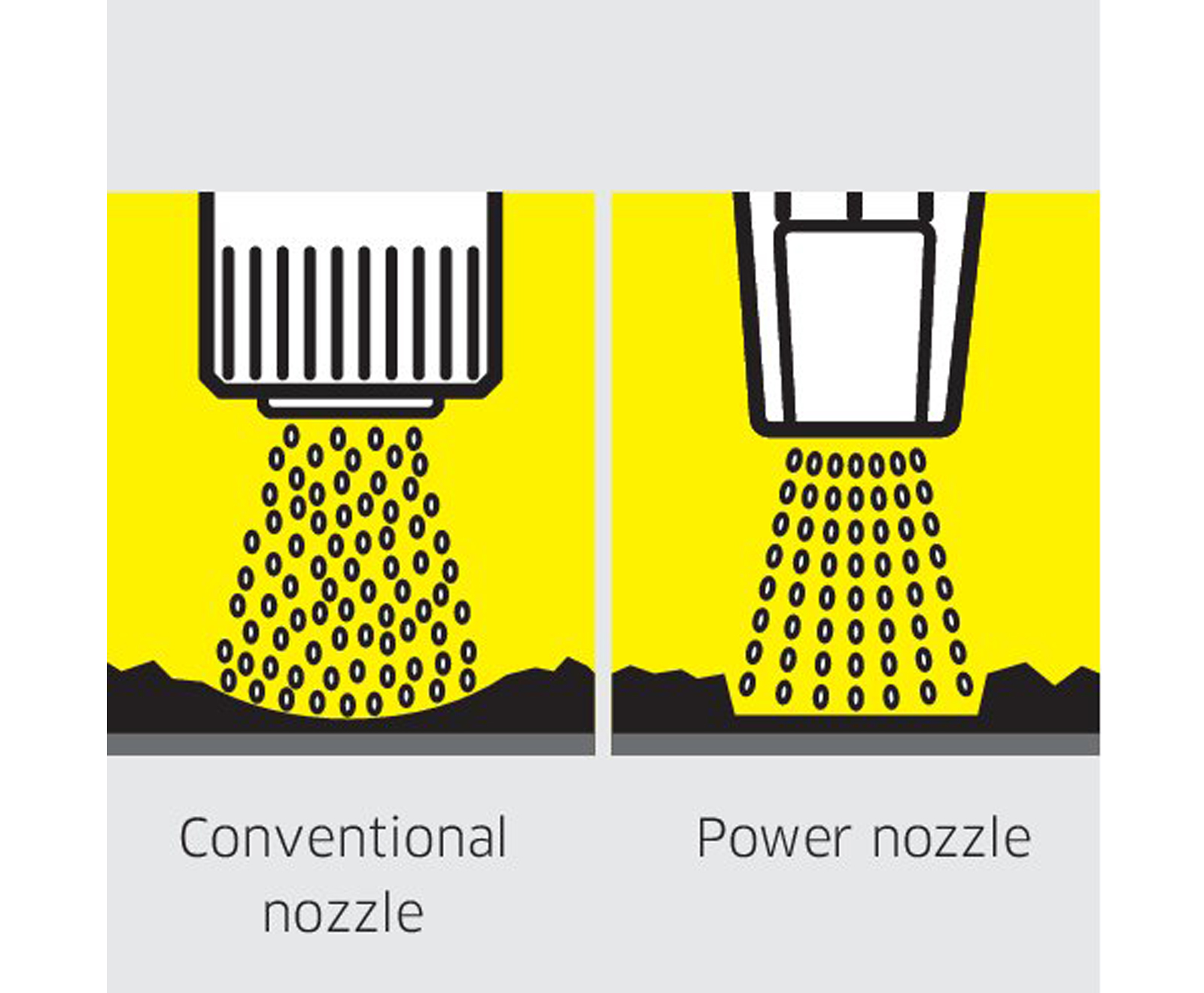

Power flat jet nozzle
5 / 8
Power flat jet nozzle
6 / 8

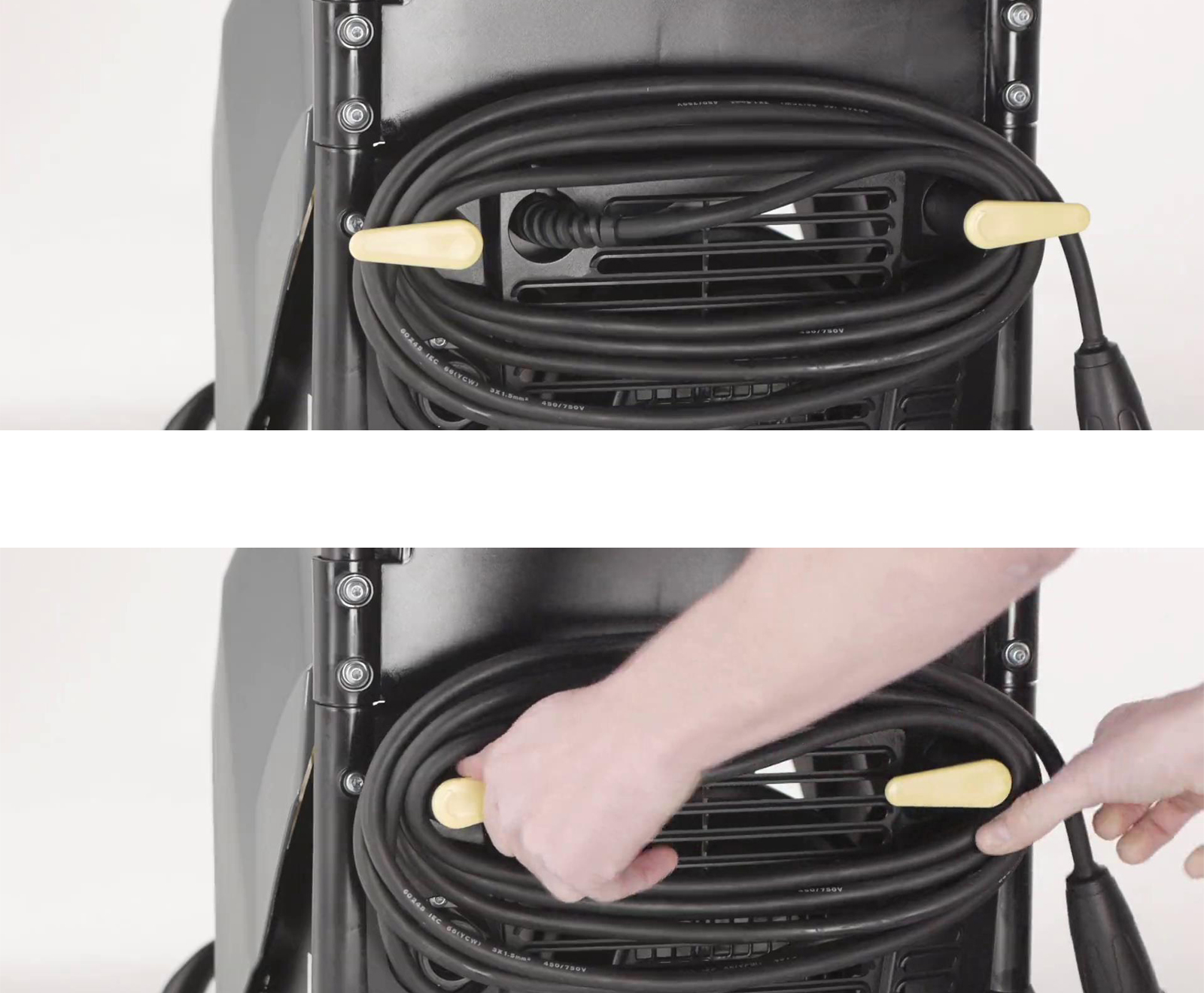

Rotating cable hooks
7 / 8

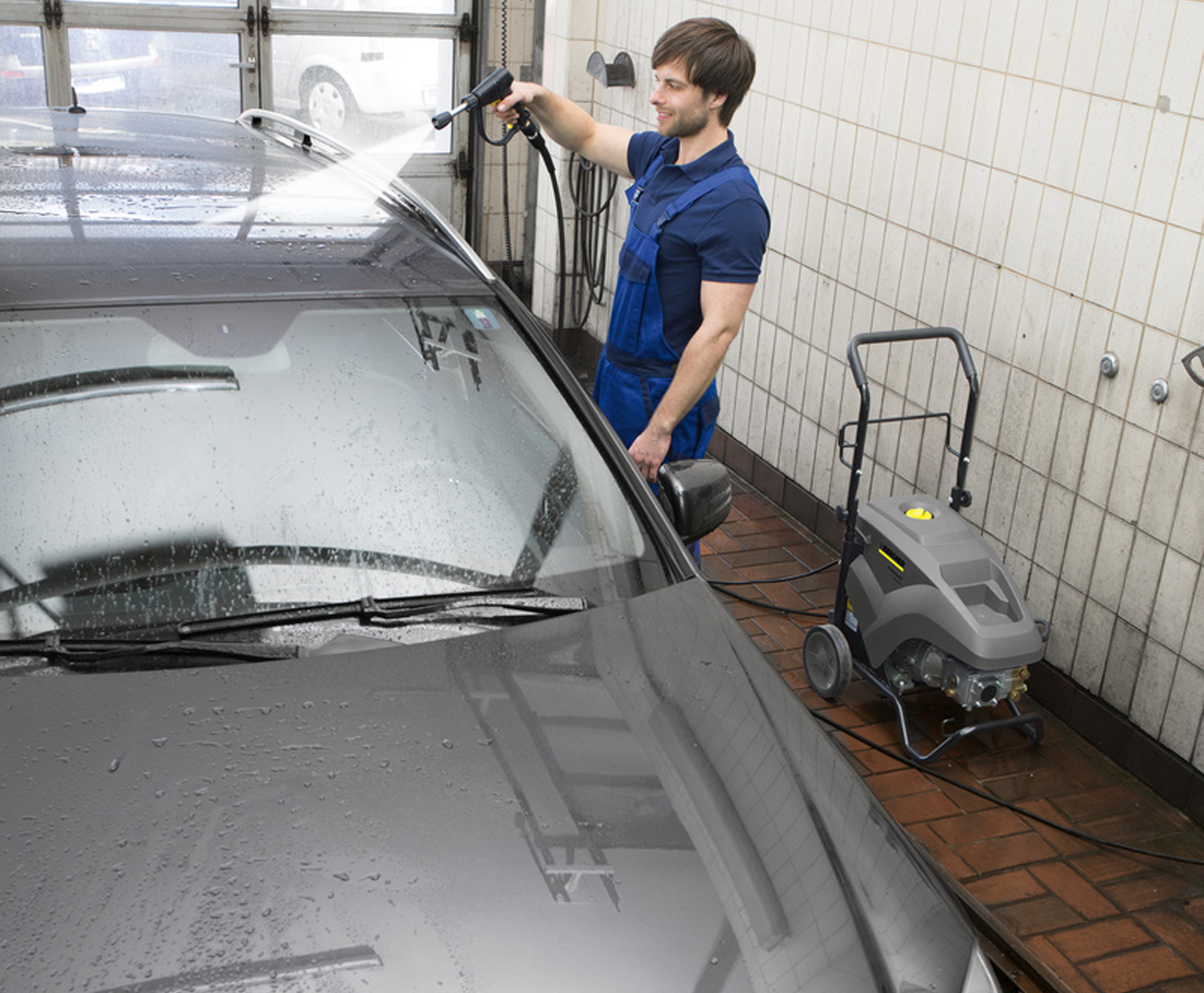

For cleaning cars
8 / 8

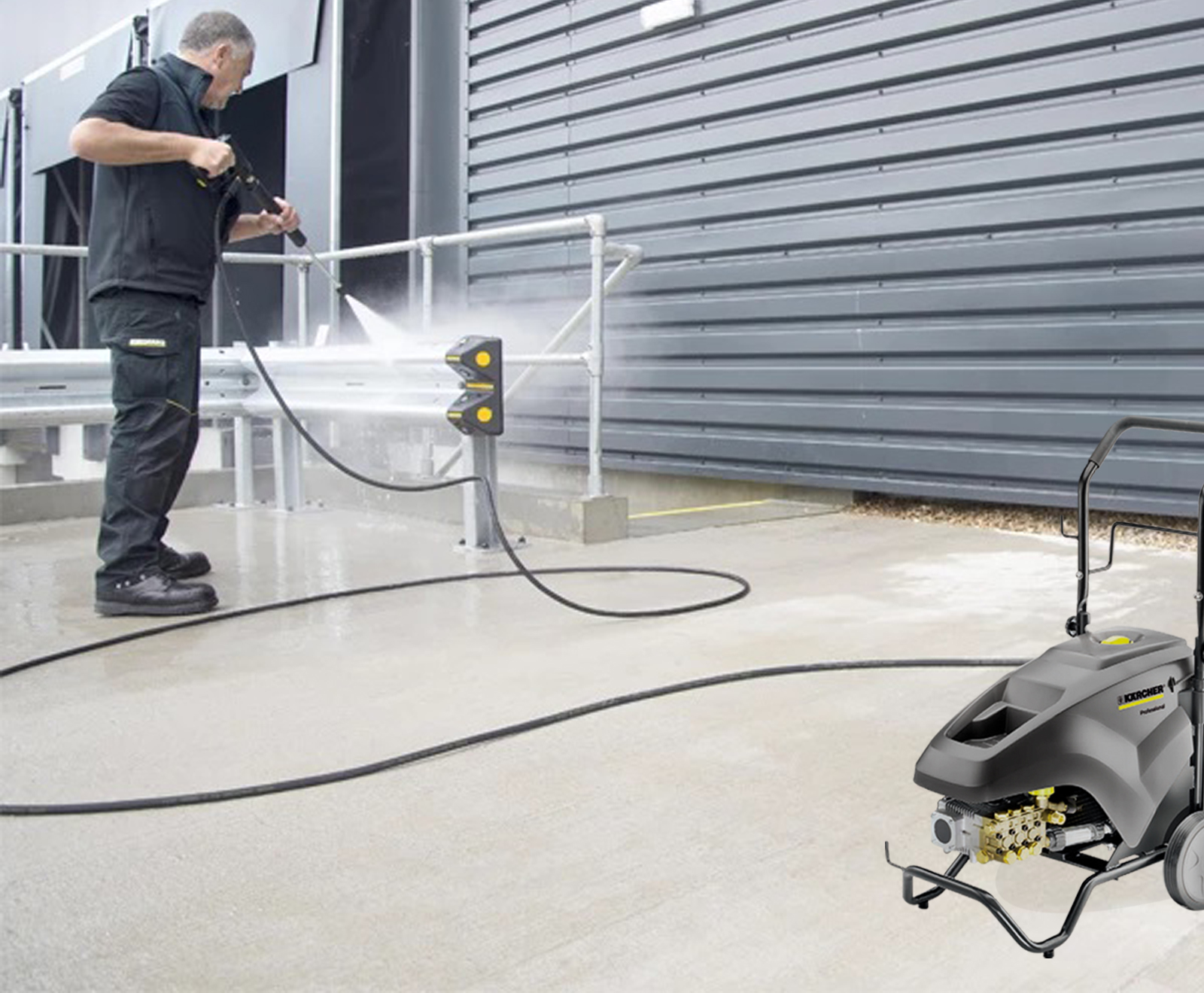

For cleaning outside areas

HD 9/20-4 Classic (part number: 1.367-308.0)

Large crankshafts and connecting rods

Wide-opening machine cover

Power flat jet nozzle

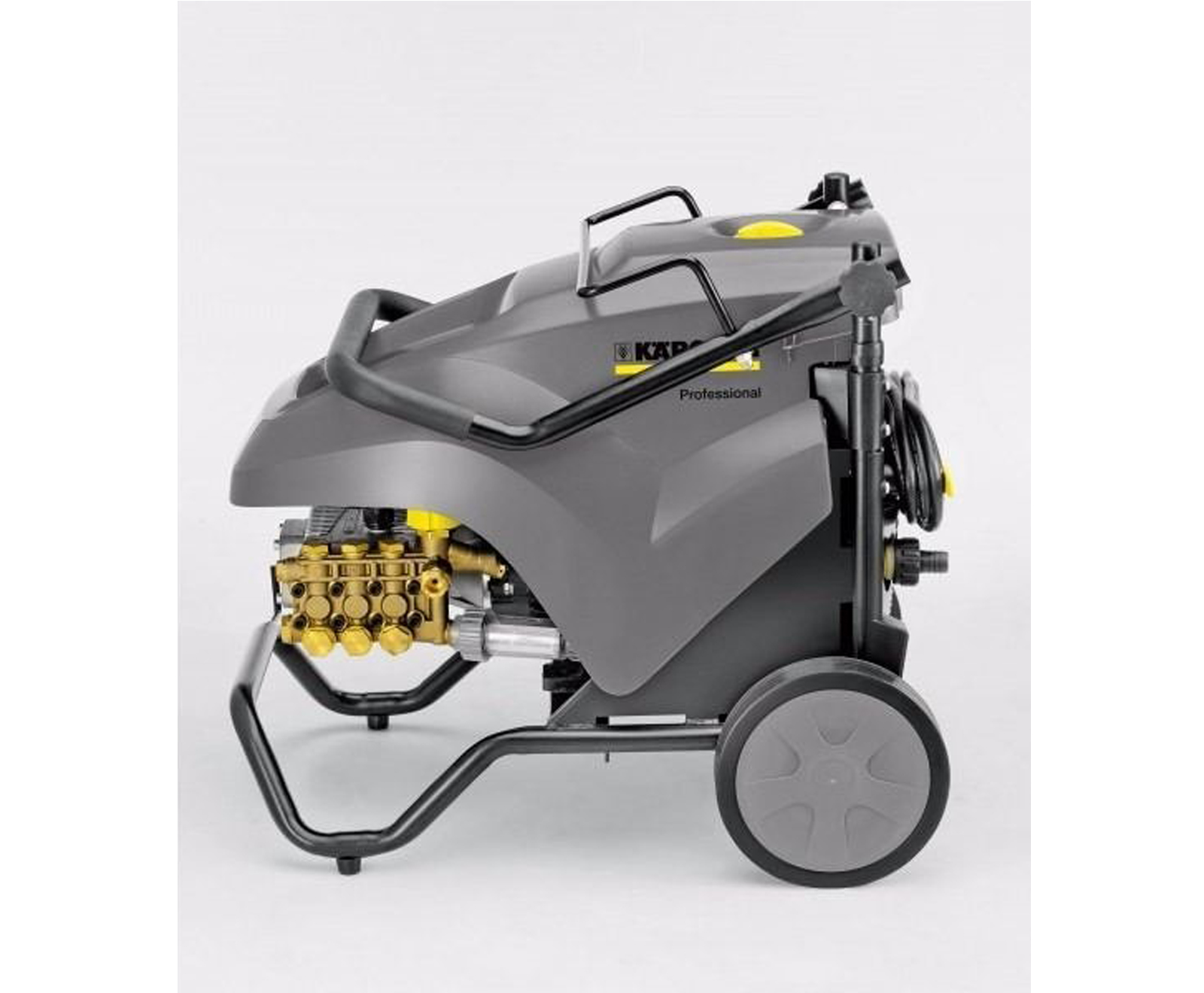

Foldable push handle

Rotating cable hooks

For cleaning cars

For cleaning outside areas








DESCRIPTION



The "HD 9/20-4" Classic high-pressure cleaner is the most high-performance model in the HD Classic range. The machine operates with three-phase current, features an impressive 900 l/h water flow, and is synonymous with high durability. All components are designed for continuous use. The intuitive operation, compact dimensions and low weight guarantee comfortable handling. The high-pressure cleaner offers ample on-board storage for the nozzle, lance and other accessories. The HD 9/20-4 Classic is also impressive in terms of efficiency: reduced cleaning times ensure a plus for profit. Service-friendliness is an additional bonus. The machine features easy access to all relevant machines parts.



FEATURES AND BENEFITS



Durable and robust
Extra large crankshafts and connecting rods with robust ball bearings.
Ceramic pistons for reduced wear and tear.
High performance sealing packages for longer working times.


Especially easy to maintain
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
Large water fine filter for protecting the pump.
Integrated nozzle storage.


Improved cleaning performance
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
High area coverage and thorough dirt removal.


Excellent mobility
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
3 / 400 / 50

Flow rate (l/h)
520 - 900

Working pressure (bar/MPa)
70 - 200 / 7 - 20

Max. pressure (bar/MPa)
240 / 24

Connection load (kW)
6.9

Weight without accessories (kg)
56

Dimensions (L × W × H) (mm)
709 x 469 x 1000

Spray gun, standard
High-pressure hose, 10 m
Spray lance, 600 mm
Power nozzle
Anti-twist system (AVS)
Pressure cut-off
Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions
