HDS-E 8/16-4 M 12 kW

On our "HDS-E 8/16-4 M" hot water high-pressure cleaner, innovative boiler insulation reduces the power consumption of the electrically heated machine (12 kW) in the stand-by mode by 40%.





1 / 8

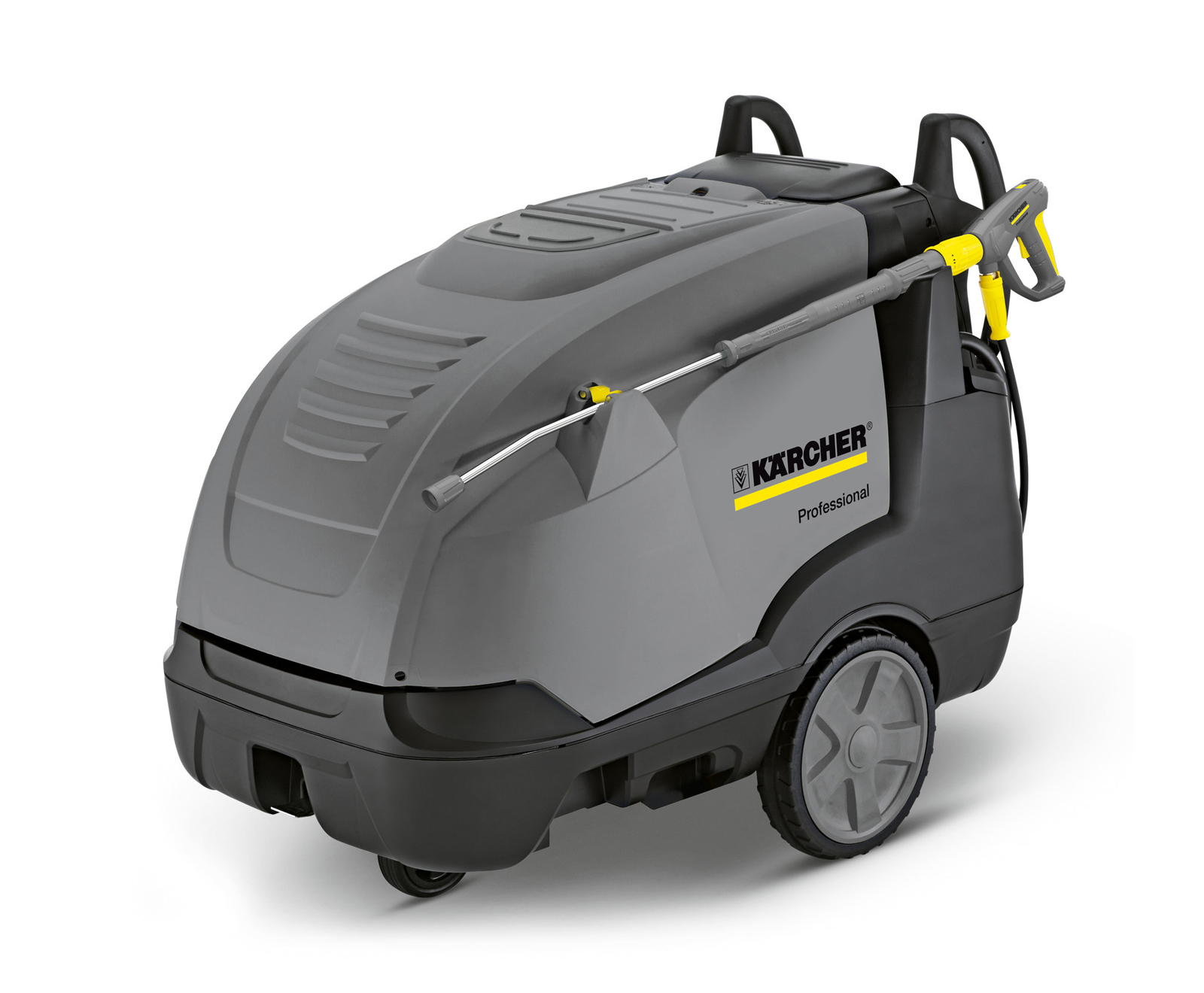

HDS-E 8/16-4 M 12 kW (part number: 1.030-900.0)
2 / 8
EASY!Force high-pressure gun
3 / 8

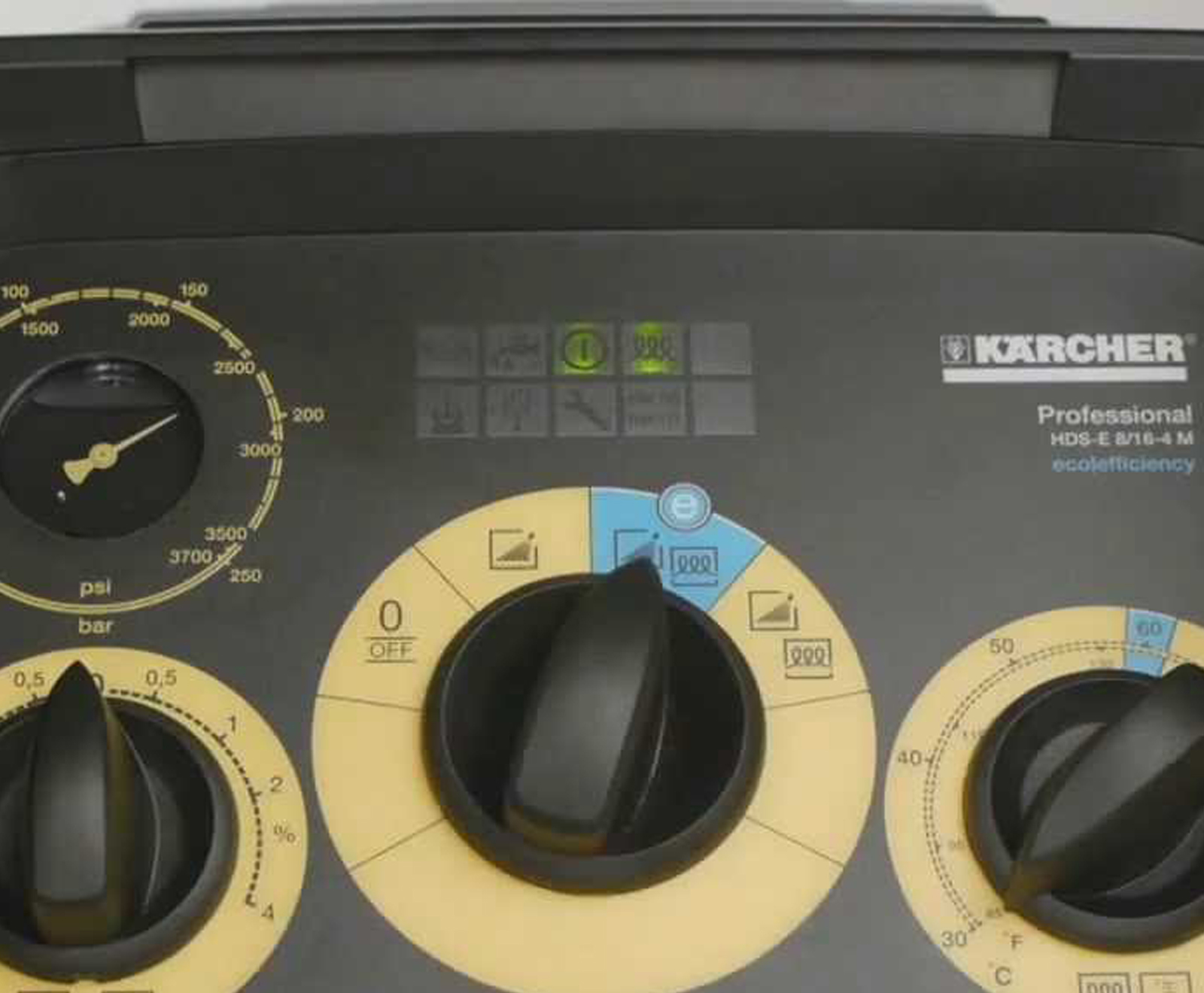

Eco!Highly energy efficient, for high cost savings mode
4 / 8

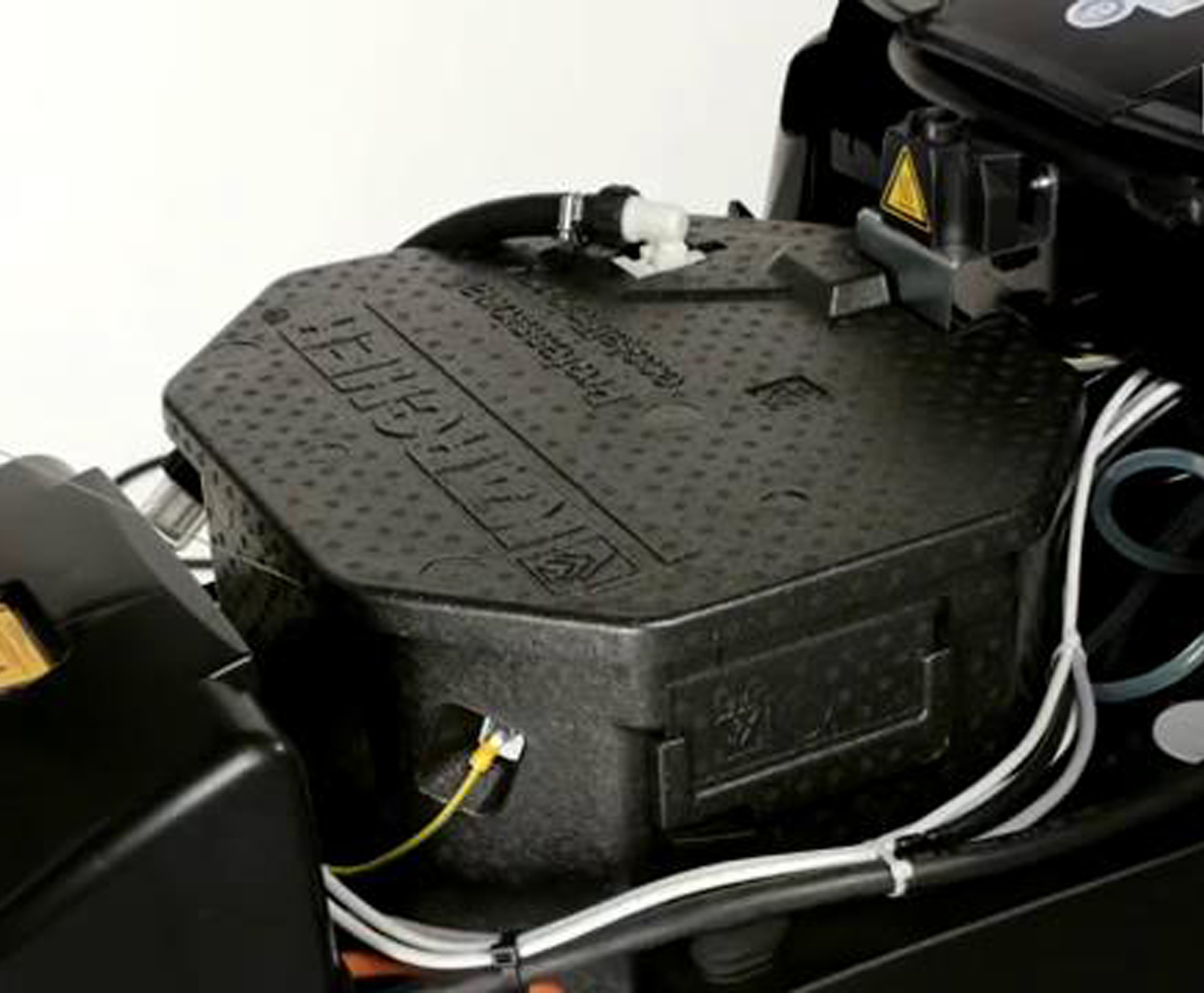

Boiler
5 / 8

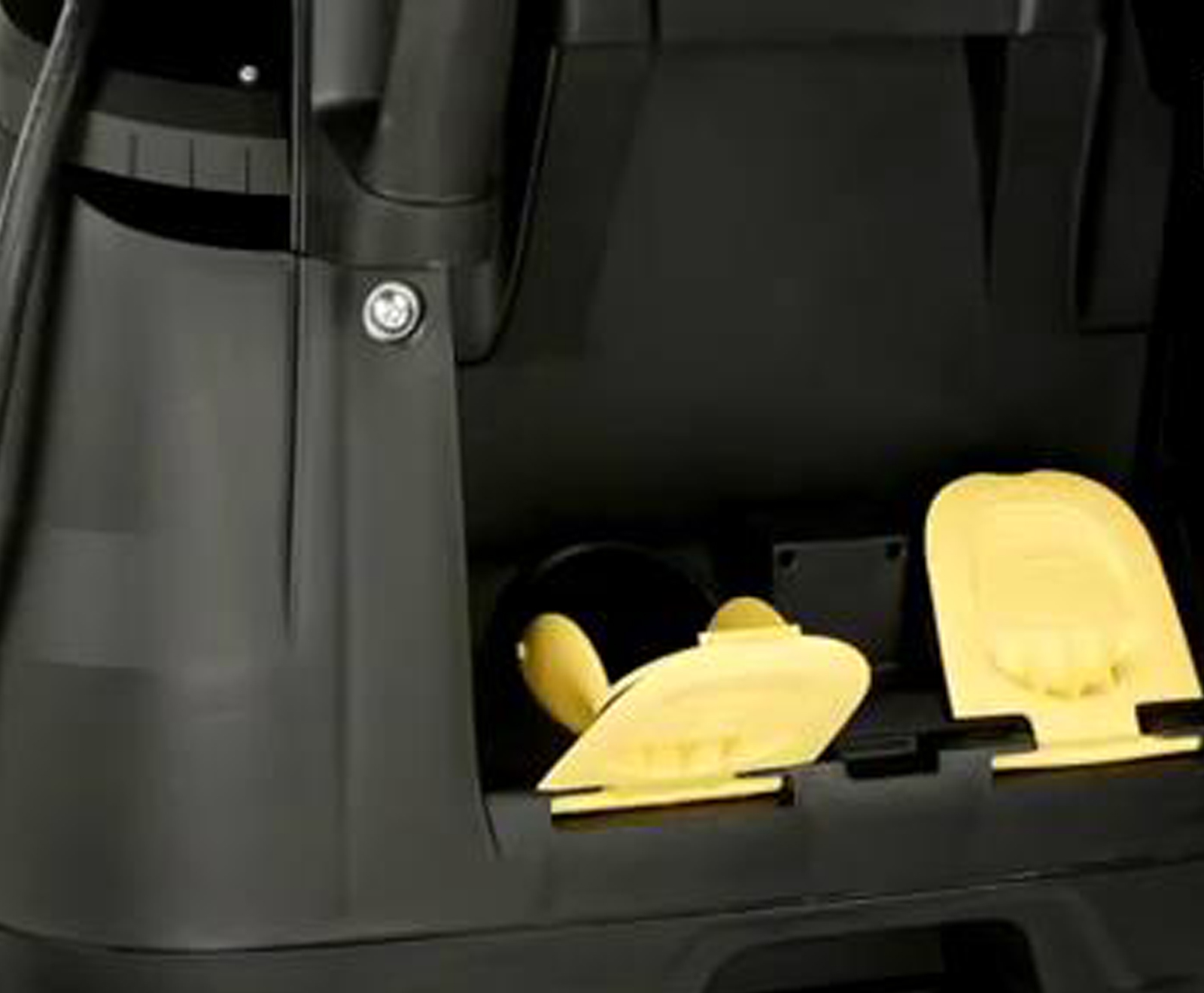

Two detergent tanks
6 / 8

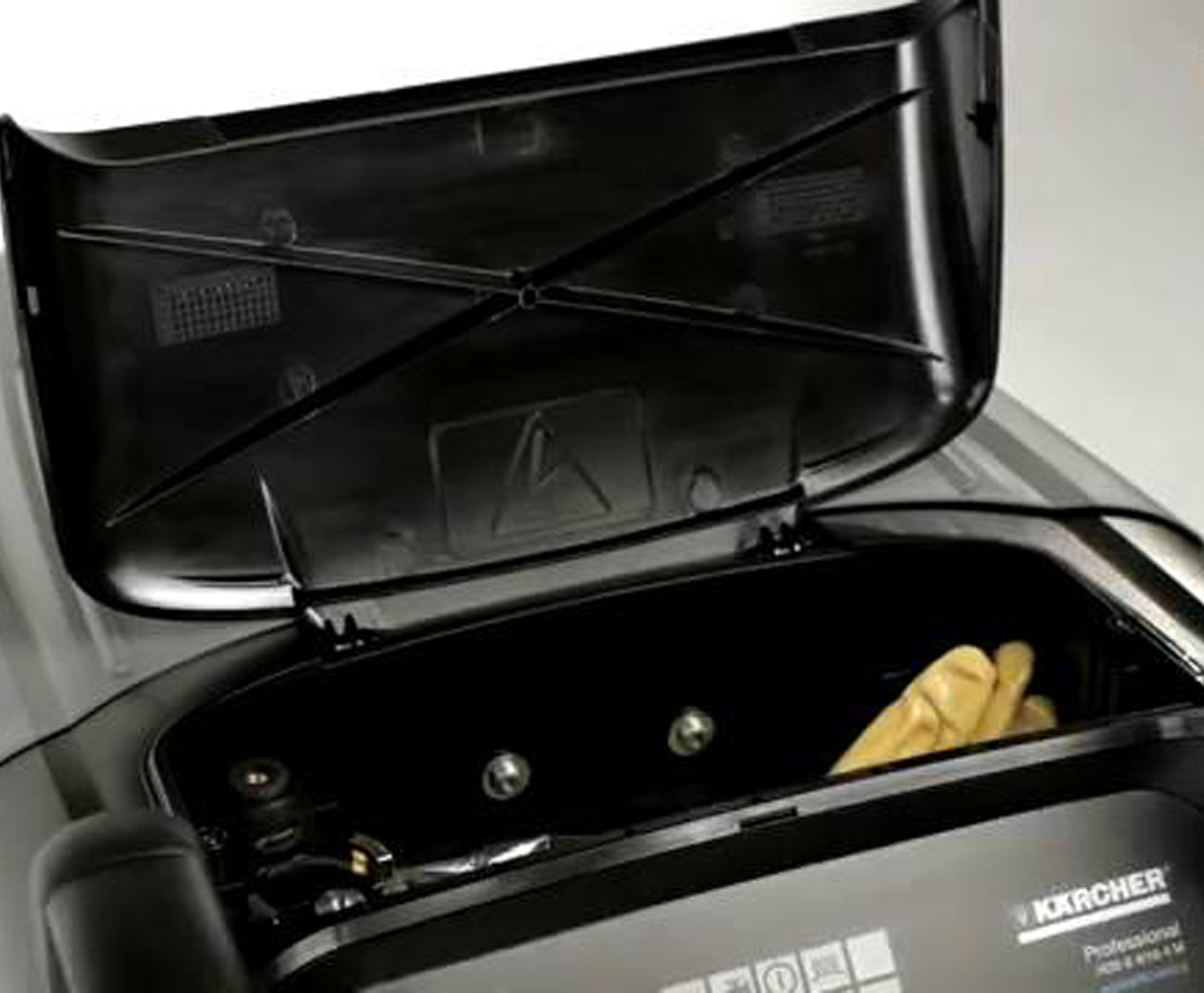

Large accessory compartment
7 / 8

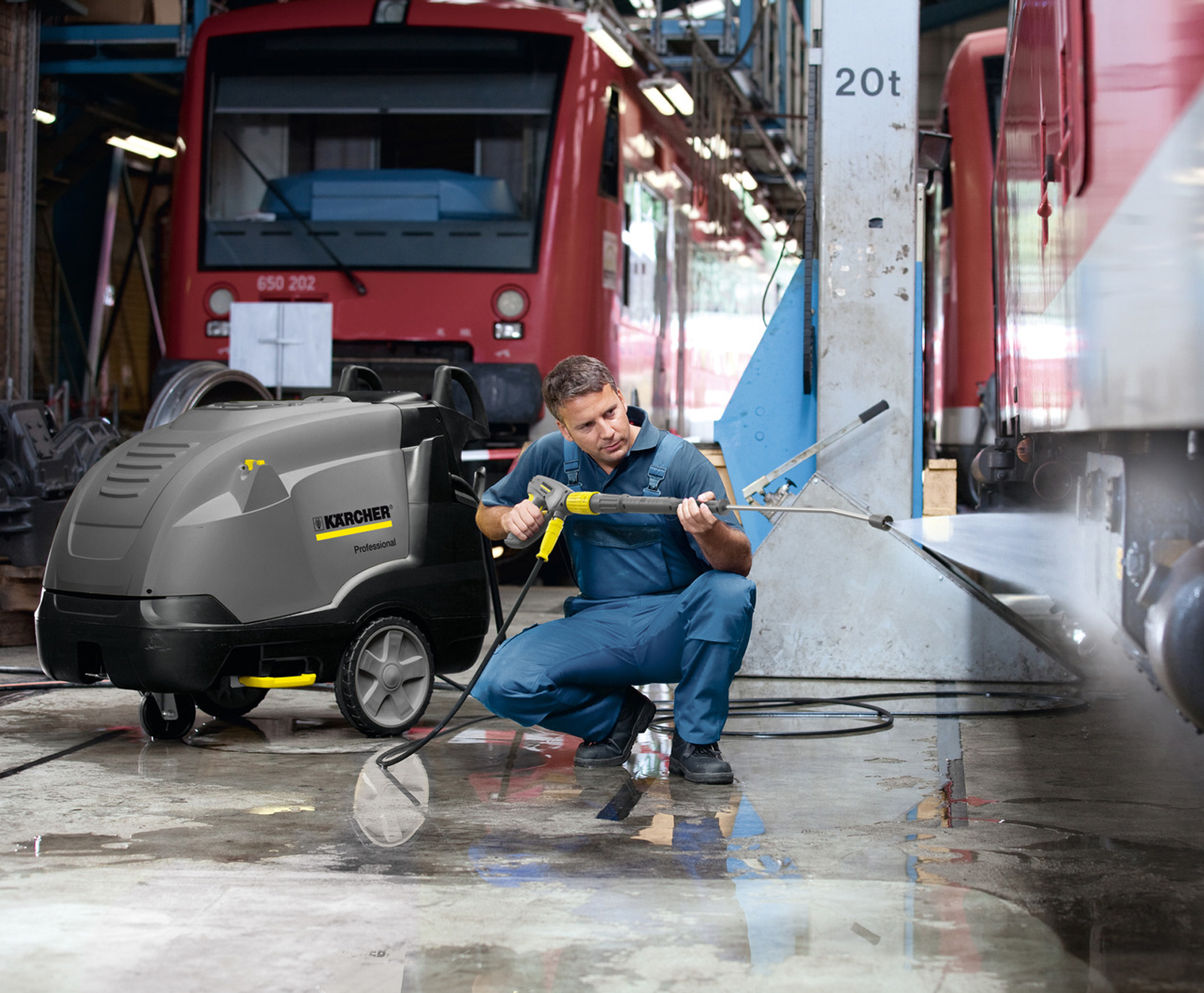

Use in railway depots
8 / 8

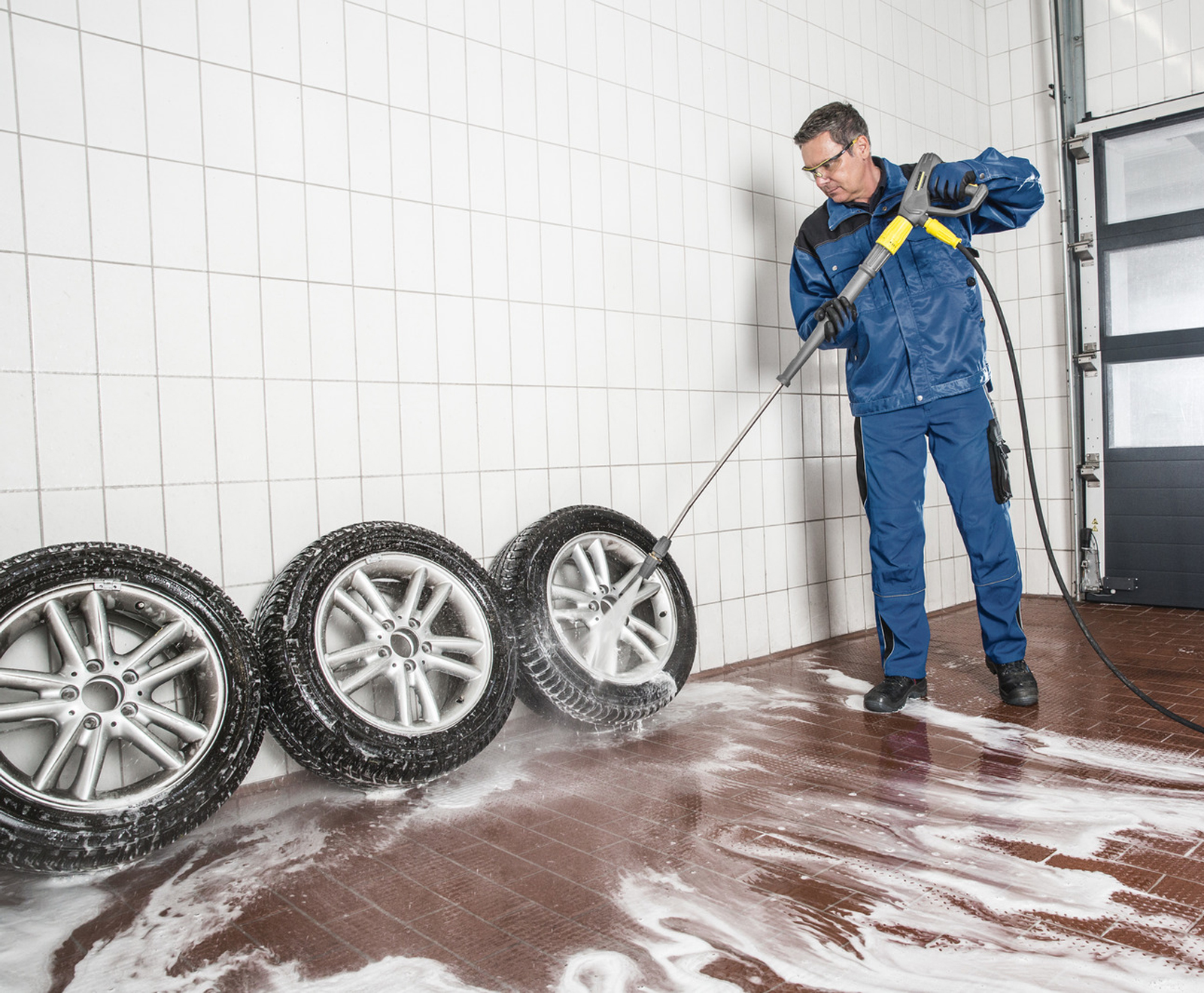

Use in auto shops

HDS-E 8/16-4 M 12 kW (part number: 1.030-900.0)

EASY!Force high-pressure gun

Eco!Highly energy efficient, for high cost savings mode

Boiler

Two detergent tanks

Large accessory compartment

Use in railway depots

Use in auto shops








DESCRIPTION



Greasy and oily dirt is most effectively tackled with high temperatures. The "HDS-E 8/16-4 M" hot water high-pressure cleaner offers a maximum work temperature of 85°C, making it optimally equipped for such tasks, with a sustained temperature of 45°C made possible thanks to Servo Control and integrated high-speed heating chamber. The innovative equipment features of the electrically heated machine also include the new EASY!Force high-pressure gun and EASY!Lock quick-release fasteners: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The "HDS-E 8/16-4 M" also impresses with outstanding energy Highly energy efficient, for high cost savings. This is ensured, amongst other things, by thenew high-quality boiler insulation, which reduces power consumption in stand-by mode by 40%, and the patented eco!Highly energy efficient, for high cost savings mode which allows the machine to work automatically in economical 60°C operation.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Highly energy efficient, for high cost savings
Highly effective insulating material saves up to 40% energy in stand-by mode.
Unique eco!efficiency mode.


Particularly high work temperature
Large water reservoir (max. 85°C).
Up to 30 °C in continuous operation.


Servo Control
For delivering a significantly higher water temperature to the accessories.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
3 / 400 / 50

Flow rate (l/h)
300 - 760

Working pressure (bar/MPa)
30 - 160 / 3 - 16

Max. temperature (supply 12°C) (°C)
30 - 85

Connection load (kW)
17.5

Power cable (m)
5

Heating output (kW)
12

Weight without accessories (kg)
119.7

Ship weight incl. packaging (kg)
130.7

Dimensions (L × W × H) (mm)
1330 x 750 x 1060

Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
Zero-emissions electric heater
Control panel with display light
Pressure cut-off
Two detergent tanks



DOWNLOADS



Product information

Operating instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



HDS-E 8/16-4 M 12 kW

On our "HDS-E 8/16-4 M" hot water high-pressure cleaner, innovative boiler insulation reduces the power consumption of the electrically heated machine (12 kW) in the stand-by mode by 40%.





1 / 8
HDS-E 8/16-4 M 12 kW (part number: 1.030-900.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Eco!Highly energy efficient, for high cost savings mode
4 / 8
Boiler
5 / 8
Two detergent tanks
6 / 8
Large accessory compartment
7 / 8
Use in railway depots
8 / 8
Use in auto shops

HDS-E 8/16-4 M 12 kW (part number: 1.030-900.0)

EASY!Force high-pressure gun

Eco!Highly energy efficient, for high cost savings mode

Boiler

Two detergent tanks

Large accessory compartment

Use in railway depots

Use in auto shops








DESCRIPTION



Greasy and oily dirt is most effectively tackled with high temperatures. The "HDS-E 8/16-4 M" hot water high-pressure cleaner offers a maximum work temperature of 85°C, making it optimally equipped for such tasks, with a sustained temperature of 45°C made possible thanks to Servo Control and integrated high-speed heating chamber. The innovative equipment features of the electrically heated machine also include the new EASY!Force high-pressure gun and EASY!Lock quick-release fasteners: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The "HDS-E 8/16-4 M" also impresses with outstanding energy Highly energy efficient, for high cost savings. This is ensured, amongst other things, by thenew high-quality boiler insulation, which reduces power consumption in stand-by mode by 40%, and the patented eco!Highly energy efficient, for high cost savings mode which allows the machine to work automatically in economical 60°C operation.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Highly energy efficient, for high cost savings
Highly effective insulating material saves up to 40% energy in stand-by mode.
Unique eco!efficiency mode.


Particularly high work temperature
Large water reservoir (max. 85°C).
Up to 30 °C in continuous operation.


Servo Control
For delivering a significantly higher water temperature to the accessories.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
3 / 400 / 50

Flow rate (l/h)
300 - 760

Working pressure (bar/MPa)
30 - 160 / 3 - 16

Max. temperature (supply 12°C) (°C)
30 - 85

Connection load (kW)
17.5

Power cable (m)
5

Heating output (kW)
12

Weight without accessories (kg)
119.7

Ship weight incl. packaging (kg)
130.7

Dimensions (L × W × H) (mm)
1330 x 750 x 1060

Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
Zero-emissions electric heater
Control panel with display light
Pressure cut-off
Two detergent tanks



DOWNLOADS



Product information

Operating instructions

Safety instructions

  Specification   Operating instructions   Safety instructions



HDS-E 8/16-4 M 12 kW

On our "HDS-E 8/16-4 M" hot water high-pressure cleaner, innovative boiler insulation reduces the power consumption of the electrically heated machine (12 kW) in the stand-by mode by 40%.





1 / 8
HDS-E 8/16-4 M 12 kW (part number: 1.030-900.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Eco!Highly energy efficient, for high cost savings mode
4 / 8
Boiler
5 / 8
Two detergent tanks
6 / 8
Large accessory compartment
7 / 8
Use in railway depots
8 / 8
Use in auto shops







DESCRIPTION



Greasy and oily dirt is most effectively tackled with high temperatures. The "HDS-E 8/16-4 M" hot water high-pressure cleaner offers a maximum work temperature of 85°C, making it optimally equipped for such tasks, with a sustained temperature of 45°C made possible thanks to Servo Control and integrated high-speed heating chamber. The innovative equipment features of the electrically heated machine also include the new EASY!Force high-pressure gun and EASY!Lock quick-release fasteners: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners enable handling that is five times faster than with conventional screw connections, without losing any robustness or longevity. The "HDS-E 8/16-4 M" also impresses with outstanding energy Highly energy efficient, for high cost savings. This is ensured, amongst other things, by thenew high-quality boiler insulation, which reduces power consumption in stand-by mode by 40%, and the patented eco!Highly energy efficient, for high cost savings mode which allows the machine to work automatically in economical 60°C operation.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Highly energy efficient, for high cost savings
Highly effective insulating material saves up to 40% energy in stand-by mode.
Unique eco!efficiency mode.


Particularly high work temperature
Large water reservoir (max. 85°C).
Up to 30 °C in continuous operation.


Servo Control
For delivering a significantly higher water temperature to the accessories.



SPECIFICATIONS



Technical data



Current type (Ph/V/Hz)
3 / 400 / 50


Flow rate (l/h)
300 - 760


Working pressure (bar/MPa)
30 - 160 / 3 - 16


Max. temperature (supply 12°C) (°C)
30 - 85


Connection load (kW)
17.5


Power cable (m)
5


Heating output (kW)
12


Weight without accessories (kg)
119.7


Ship weight incl. packaging (kg)
130.7


Dimensions (L × W × H) (mm)
1330 x 750 x 1060



Equipment



Spray gun, EASY!Force Advanced


High-pressure hose, 10 m


Spray lance, 1050 mm


Power nozzle


Zero-emissions electric heater


Control panel with display light


Pressure cut-off


Two detergent tanks



DOWNLOADS



Product information

Operating instructions

Safety instructions

  Specification   Operating instructions   Safety instructions


VIDEOS



  • Production of EASY!Force Advanced

  • Demonstration of EASY!Force Advanced

  • Comparison of Cold and Hot Water Cleaning



APPLICATION AREAS



Electrically heated hot water high-pressure cleaner for exhaust-free operation in indoor areas


Railway depots


Auto shops


Swimming pool cleaning


Cleaning of sports facilities
