| Clean Power Smart Bin Series - WL-YN Series |
| |
|
| Introduction |
| |
|
| The Smart Bin series are automatic collection systems. Through the intelligent automatic systems, it can show the users' input and weighing records in real time, eliminate bacteria and odors immediately, solve the arisen hygiene problems, and save manpower to achieve high-efficiency recycling. |
| |
|
| The Smart Bin adopts a low-energy design, showing the general trend of green environmental protection. It uses high-quality galvanized plates and the design has a high-level of suitability for outdoor use, ensuring that the system can operate reliably and stably for a long time. |
| |
|
| The Smart Bin system can be accessed through the smart card or the QR code in the user's mobile phone app. It will automatically open the discharge port and allow the user to put solid waste in the bin. The system will weigh the waste in real time and display the weight of the waste. |
| |
|
| According to the data collection and analysis of the Smart Bin system platform, the Smart Bin system incooperates a follow-up scoring or encouragement plan to attract more users to use the system, cultivating people's sorting and recycling habit and environmental protection knowledge. |
| |
|
| Smart Bin Series |
| |
|
| The Smart Bin is an automatic collection system that can achieve cleaning and hygienic purpose, eliminate bacteria and odors, reduce manpower, and keep records. |
| |
|

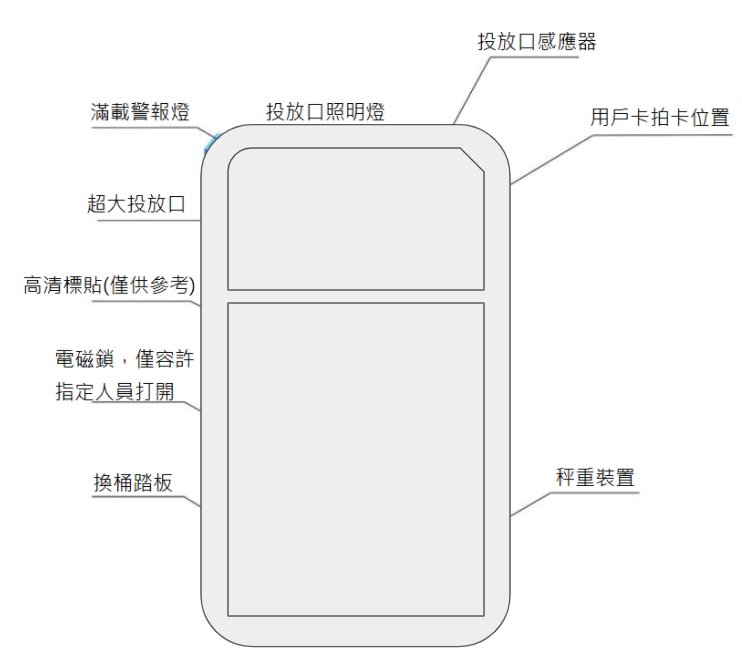

| Configuration |
| |
|
| • |
Smart Collection Device: after the smart card is tapped, the collection slot will automatically open and the collection slot will automatically close after collection. |
| |
|
| • |
Weighing Function: inside the Smart Bin, there is a four-corner balanced intelligent weighing device which can display the weight of colleted items in real time. |
| |
|
| • |
Full Load Warning: when the Smart Bin is full, the corresponding warning light will loght up. The background intelligent system will send the corresponding full load warning signal to notify the users that collection is temporarily unavailable and the management personnel to follow-up accordingly. |
| |
|
| • |
Collection Slot Lights: the lights of the Smart Bin will automatically turned on according to the environment so that users can use Smart Bin at night. |
| |
|
| • |
Waterproof Design: suitable for outdoor use. |
| |
|
| • |
Anti-theft Function: the collection slot is equipped with a self-locking device to ensure security and avoid pollution from impurity and garbage. |
| |
|
| • |
Disinfection and Deodorization Function: built-in function for disinfection and deodorization to avoid polluting the surrounding environment. |
| |
|
| • |
Inner Bin Storage: it matches the common 120L / 240L / 660L collection bins in Hong Kong. |
| |
|
| • |
Material: with its high-quality houising strengthened by multiple brackets for outdoor use, the structure is stable. The machines are equipped with ventilating and heat dissipating devices and cooling fans at the back, which protect the internal electrical components and increase the service life. |
| |
|
| • |
Surface Treatment: being anti-ultraviolet and durable, the bin can be painted in different colors as required and the colors can show a professional and practical taste. |
| |
|
| Power Supply: 1 x 220V |
| |
|
| Inner Bins: match the sizes of 120L, 240L, 660L collection bins commonly used in Hong Kong. |
| |
|
| Smart Bin Models |
| |
|
 |

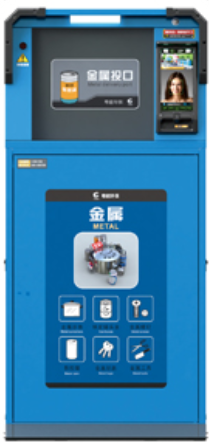

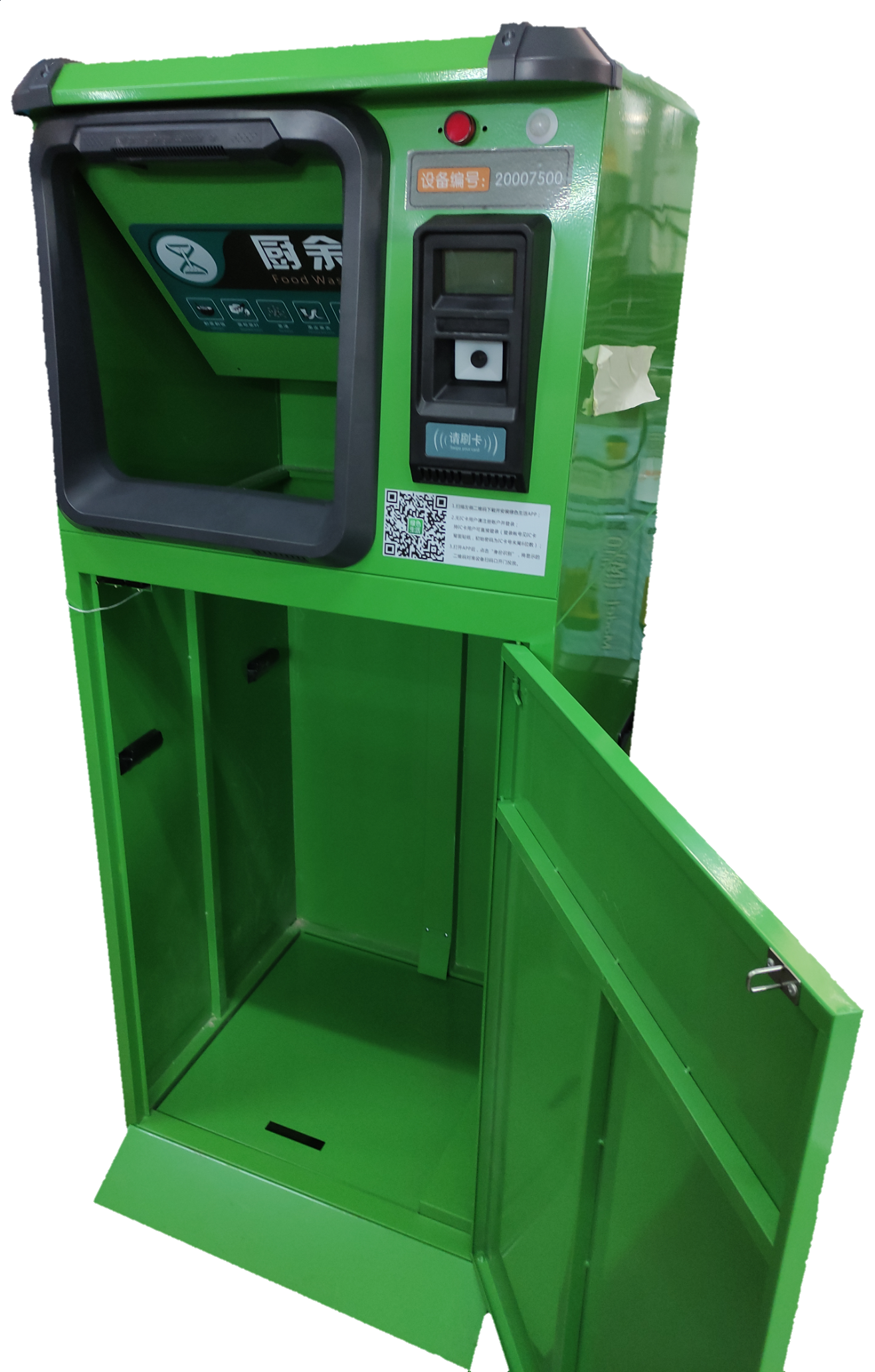

WL-YN120: use with a 120L plastic bin, size: 680x760x1621mm |
|
| |
|
 |
WL-YN240: use with a 240L plastic bin, size: 750x880x1740mm |
|
| |
|
 |

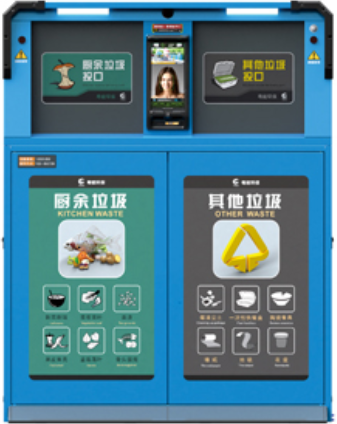

WL-YN480: use with two 240L plastic bins, size: 1420x795x1740mm |
|
| |
|
 |

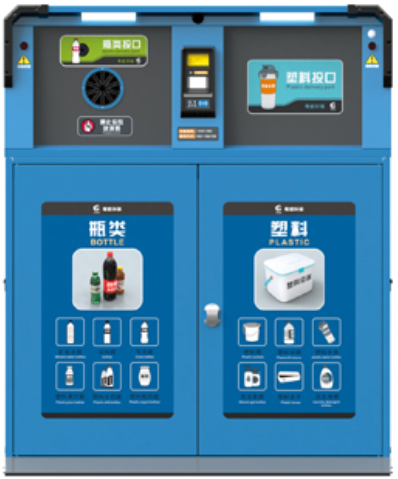

WL-YN480P: a variant of WL-YN480, the collection slot is modified for plastic item collection |
|
| |
|
 |

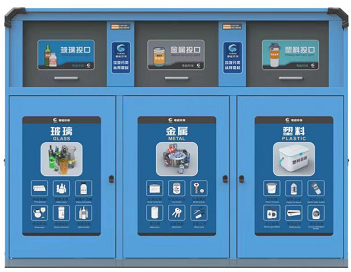

WL-YN720: use with three 240L plastic bins, size: 2128x770x1740mm |
|
| |
|
 |

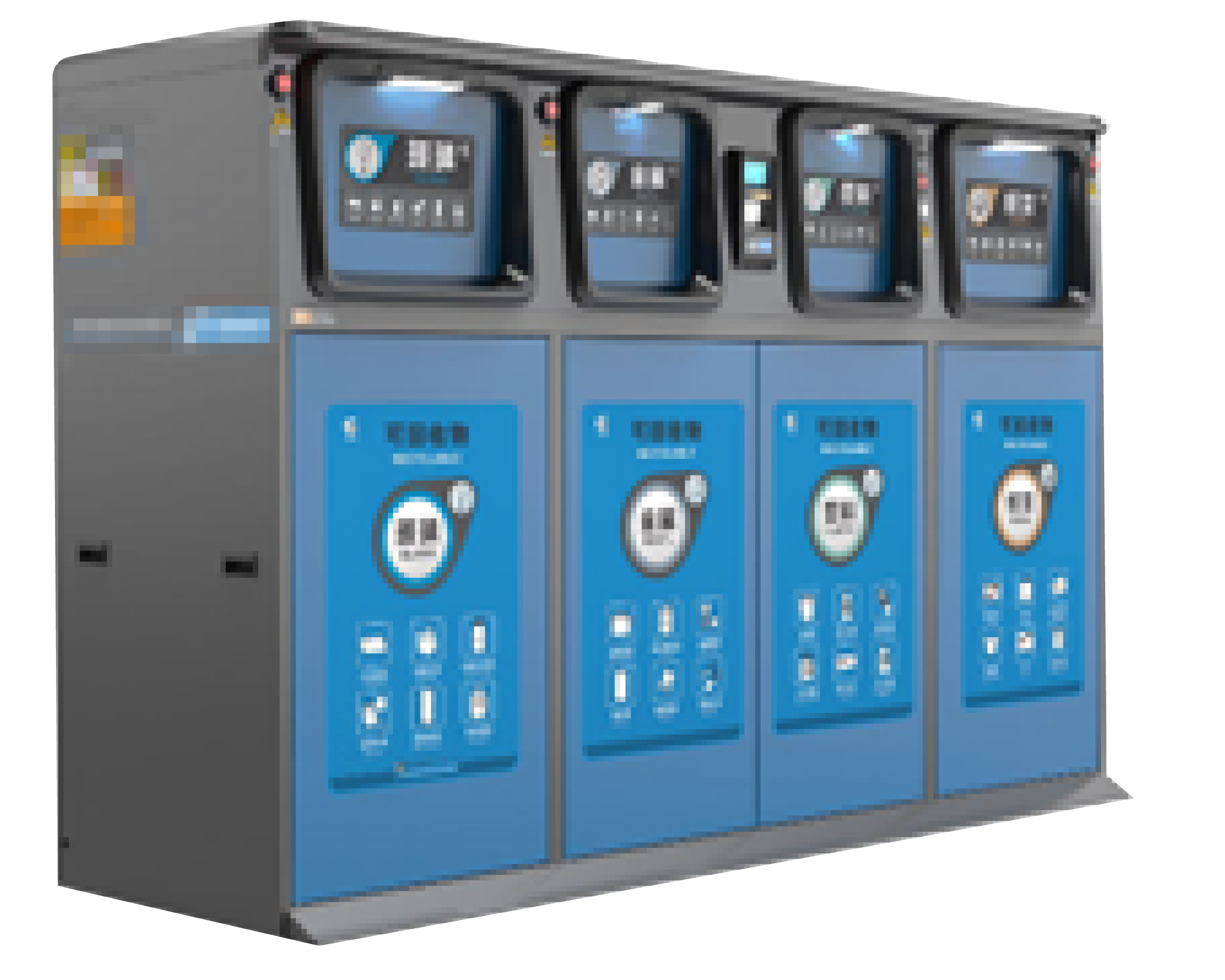

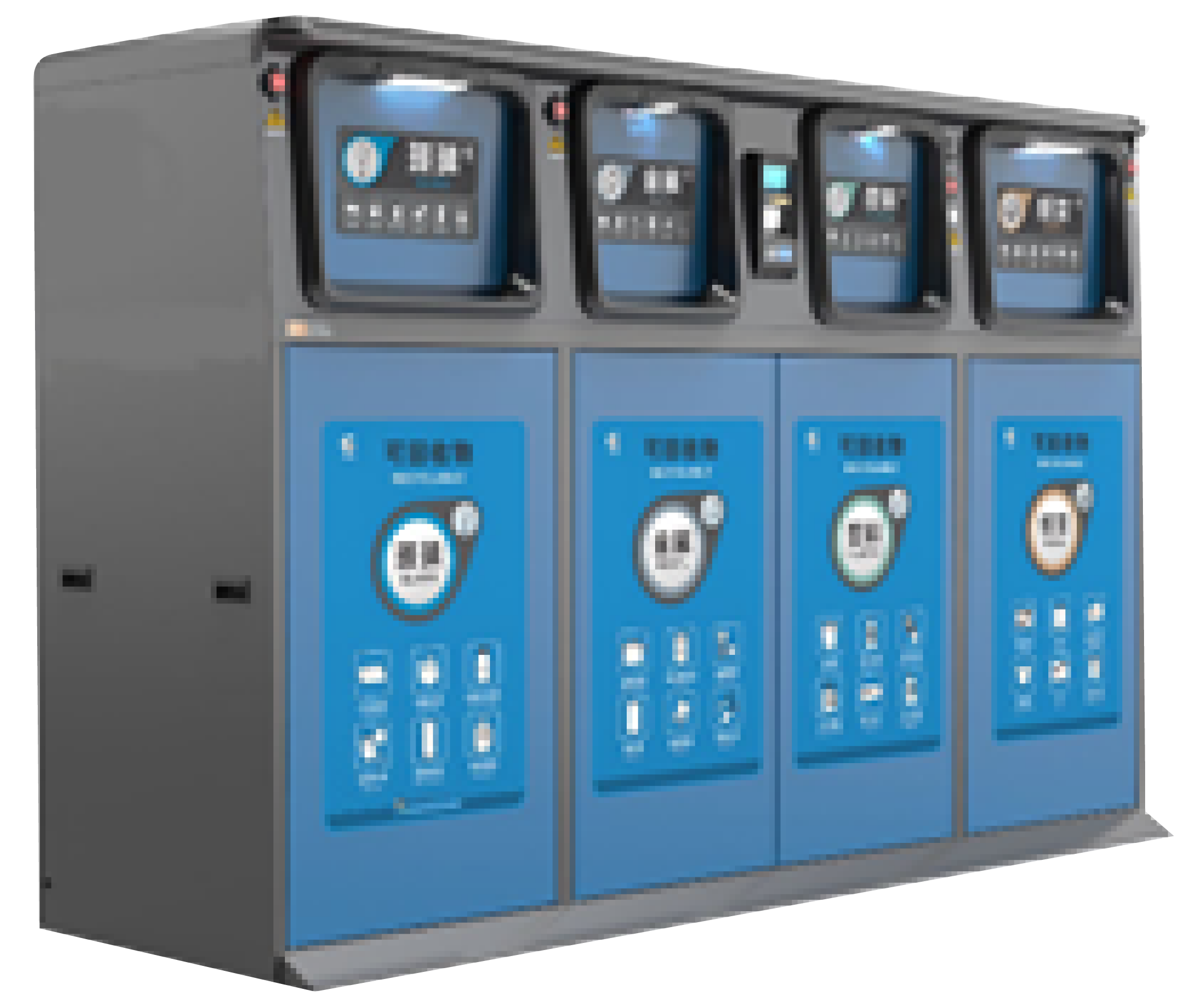

WL-YN960: use with four 240L plastic bins, size: 2660x880x1740mm |
|
| |
|
 |
WL-YN660: use with a 660L plastic bins, size: 1670x940x1740mm |
|
| |
|
| * The above product photos are for reference only |
| |
|
| |
|
| Regarding the recycling materials for the Smart Bins, the following materials are recommended: |
| |
|
| • |
Waste paper |
| |
|
| • |
Fabric (such as old clothes) |
| |
|
| • |
Aluminum cans and other metals |
| |
|
| • |
Plastics and plastic bottles |
| |
|
| • |
Food waste |
| |
|
| • |
Glass |
| |
|
| Smart Bin Specifications |
| |
|
| Dimensions (External): 680x760x1621mm |
| |
|
| Capacity: 120L |
| |
|
| Capacity : 40Kg |
| |
|
| Material: High grade galvanized plate |
| |
|
| Dimensions (internal, to accommodate the 120L “Foodwaste Bin” with dimensions of 550x480x940mm (LxWxH)): 500x530x940mm |
| |
|
| Power Consumption: 0.015kW/h |
| |
|
| Power Supply: 220V, 50Hz, Single Phase |
| |
|
| CCTV: No, but it is recommended to install externally as needed. |
| |
|
| Weighting Sensor: equipped |
| |
|
| Level Sensor: equipped |
| |
|
| Record of individual weight: Yes |
| |
|
| Record of individual weight: Ozone technology |
| |
|
| User identification technology: RFID technology |
| |
|
| Network communication: 4G cellular mobile technology |
| |
|
 |
| |
|
| |
|
