| TOWA water pumps offer low-cost alternatives of similar pumps of other brands. |
| |
|

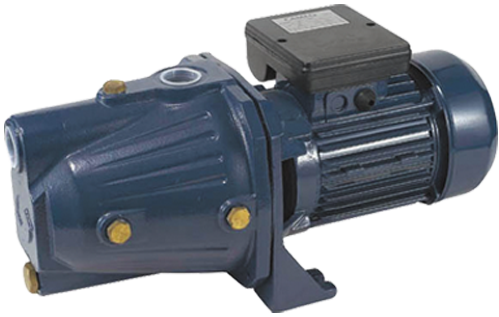

| JET-100L |
| |
|
| The JET-100L is a self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems connected to autoclave tanks. It is used for transferring liquids and emptying tanks as well as gardening. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Voltage: 220V/50Hz |
| ▸ |
Speed: 2850 rpm |
| ▸ |
Input power: 1 kW |
| ▸ |
Output power: 0.75 kW |
| ▸ |
Maximum flow rate: 50 L/min |
| ▸ |
Maximum head: 50 m |
| ▸ |
Inlet/Outlet diameter: 1" |
| ▸ |
Net weight: 13.4 kg |
|
| |
|

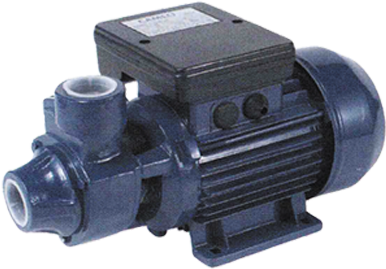

| IDB35 |
| |
|
| The IDB35 is a clean water pump for small household systems and simple industrial applications. It has superior performance in view of the required output. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Voltage: 220V/50Hz |
| ▸ |
Speed: 2850 rpm |
| ▸ |
Input power: 0.52 kW |
| ▸ |
Output power: 0.37 kW |
| ▸ |
Maximum flow rate: 40 L/min |
| ▸ |
Maximum head: 40 m |
| ▸ |
Inlet/Outlet diameter: 1" |
| ▸ |
Net weight: 5.4 kg |
|
| |
|

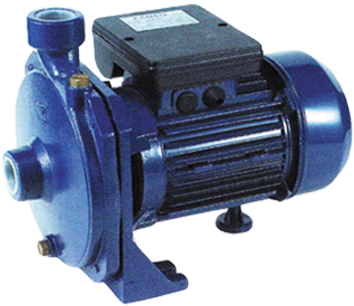

| SCM50 |
| |
|
| The SCM50 series is a centrifugal pump suitable for household, civil, industrial, small and medium agricultural applications. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Voltage: 220V/50Hz |
| ▸ |
Speed: 2850 rpm |
| ▸ |
Input power: 1 kW |
| ▸ |
Output power: 0.5 kW |
| ▸ |
Maximum flow rate: 110 L/min |
| ▸ |
Maximum head: 32 m |
| ▸ |
Inlet/Outlet diameter: 1" |
| ▸ |
Net weight: 14.1 kg |
|
| |
|

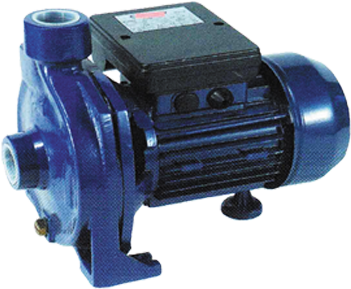

| CPM Series |
| |
|
| With 1" or 2" outlet, the CPM series are centrifugal pumps providing medium head and flow rate. They are mainly used in applications requiring medium flow rate. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Voltage: 220V/50Hz |
| ▸ |
Speed: 2850 rpm |
| ▸ |
Input power: 0.6 to 2.2 kW |
| ▸ |
Output power: 0.37 to 1.5 kW |
| ▸ |
Maximum flow rate: 90 to 450 L/min |
| ▸ |
Maximum head: 20 to 36 m |
| ▸ |
Inlet/Outlet diameter: 1", 2" |
| ▸ |
Net weight: 9 to 14 kg |
|
| |
|
| |
|
